CNC Stainless Steel/Aluminum Spring Guide [Maxx]

CNC Stainless Steel/Aluminum Spring Guide [Maxx]

Write a review

€17.90

Tax included

Política de segurança

(editar com o módulo Customer Reassurance)

Guarantee safe & secure checkout

Product Description

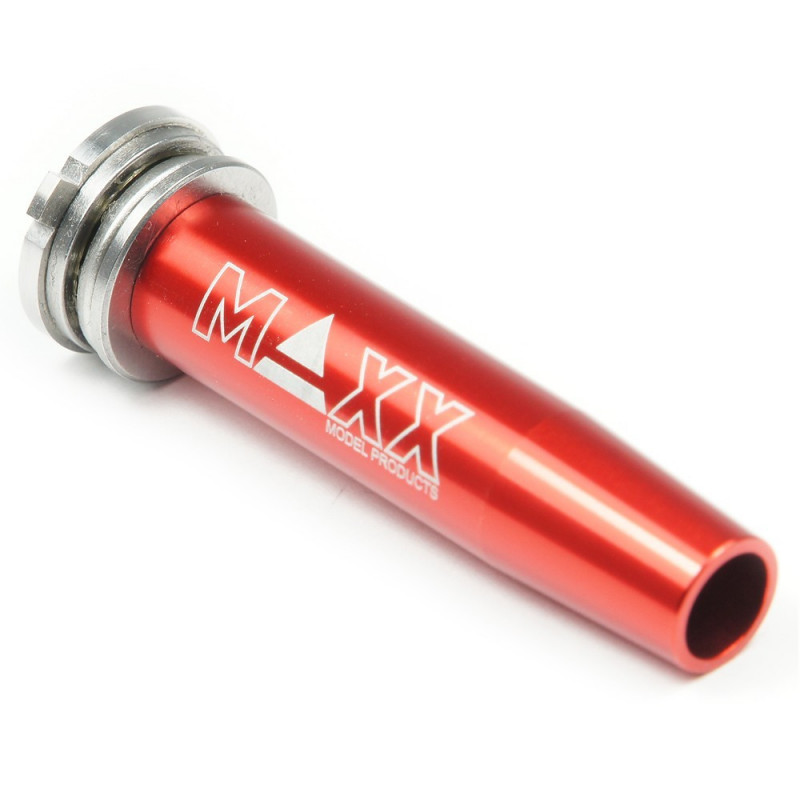

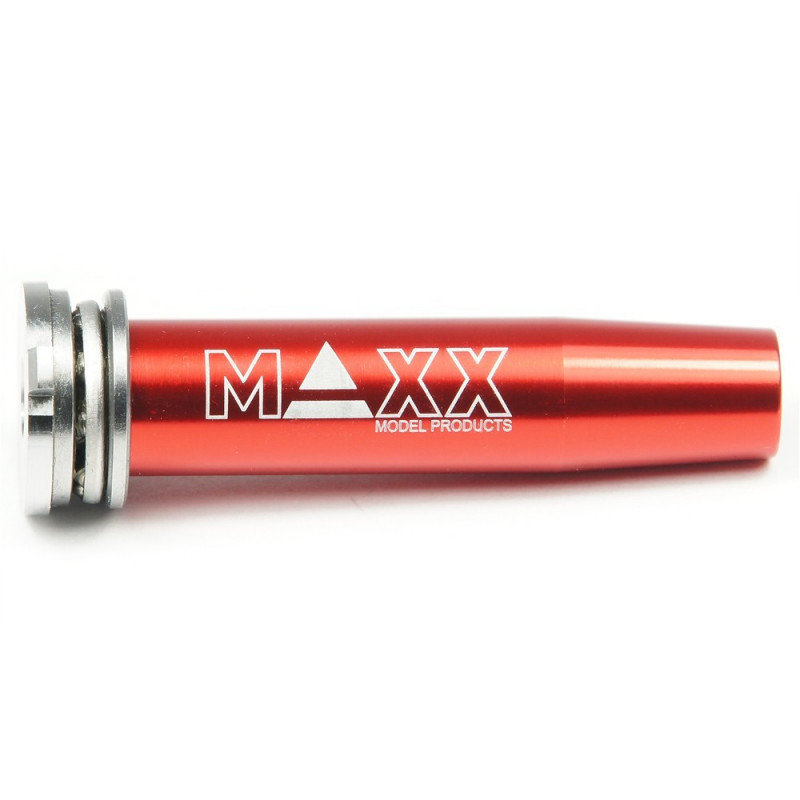

CNC Stainless Steel/Aluminum Spring Guides are designed to keep the spring in line and allow the spring to rotate on shaft during high compression, suitable for AEG version 2 gear box upgrades.
This Spring Guide is machined with an M5 thread on stainless steel hub to hold the stock securely and equipped thrust ball bearing to reduce spring stress and breakage during high speed spring compression. Made of Stainless Steel and Aluminum.

Includes
1 x CNC Stainless Steel/Aluminum Spring Guide

Specification
Hub Internal Thread: M5x0.80
Hub Outer Diameter: 16mm
Shaft Outer Diameter: 10.8mm
Shaft Length: 44.5mm
Overall Length: 51.5mm
Material: Stainless Steel and Aluminum

Features
Stainless Steel and Aluminum construction

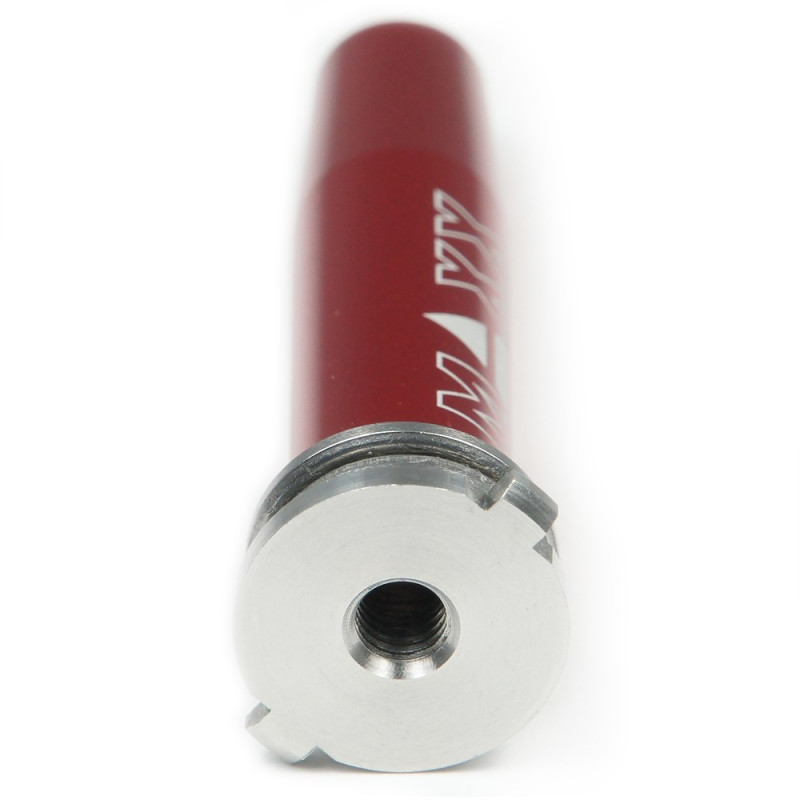

Machined M5 thread on stainless steel hub
Equipped thrust ball bearing to reduce spring stress and breakage
Aligned spring in line and rotate on shaft during high compression
Strong stainless steel hub chamfer shoulder designs

Weight
14 grams

Usage
Used for AEG version 2 gear box upgrades (M4, M16, MP5,...)

Requires
Wearing eye protection is recommended
Use proper tools for disassembly and reassembly the spring guide with great care due to spring tension
Bearing lubricant oil/grease is recommended for smooth operation

Instruction
Instruction Manuals are included
