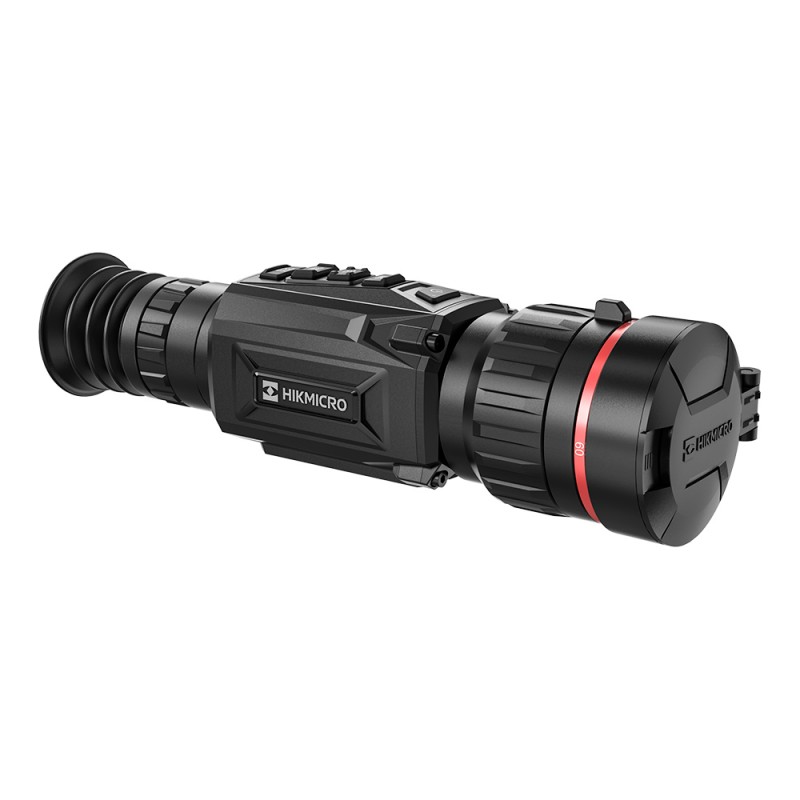

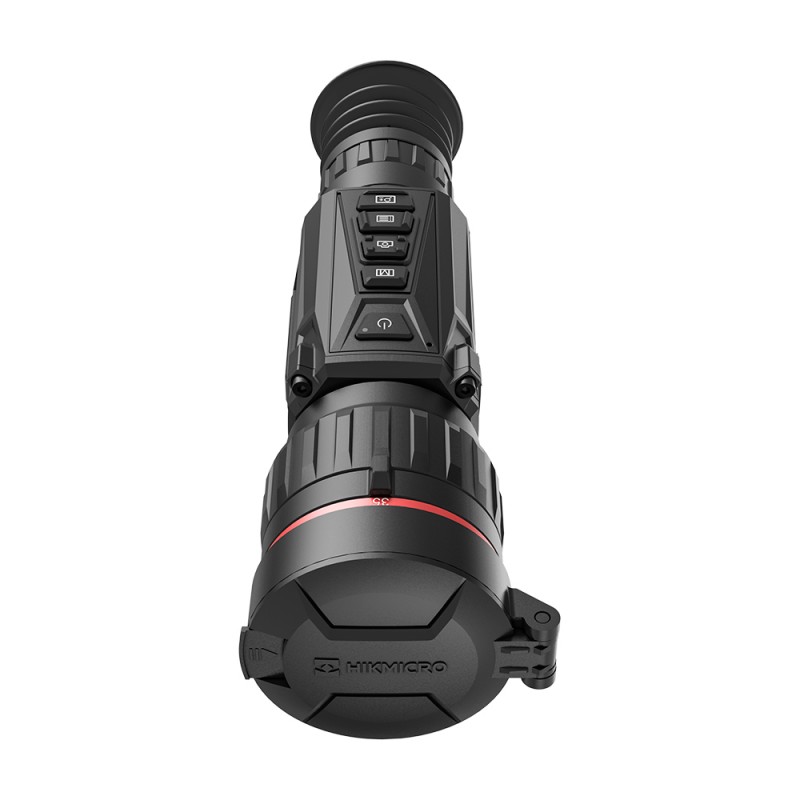

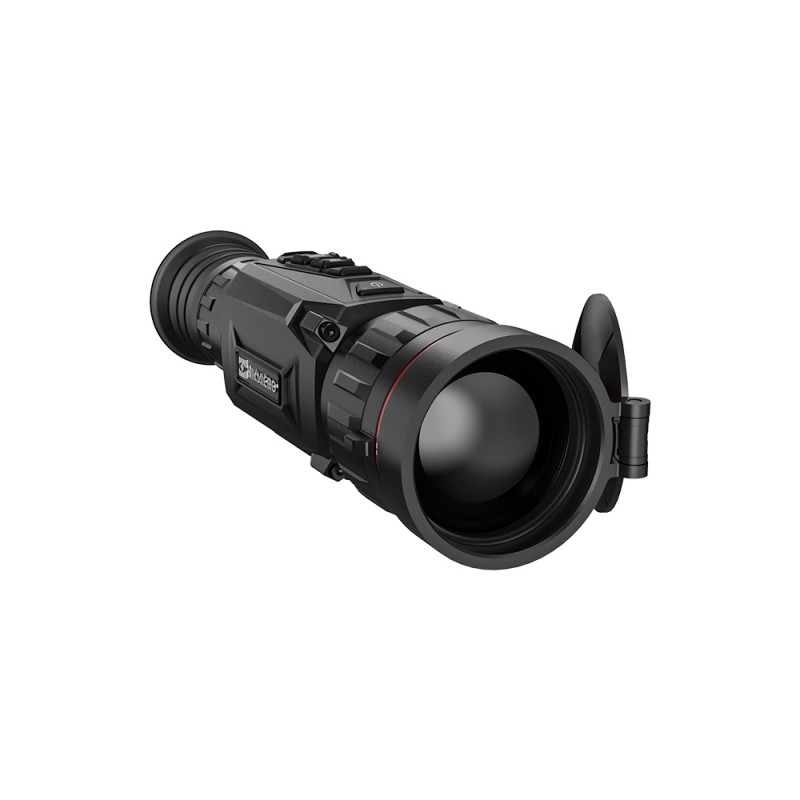

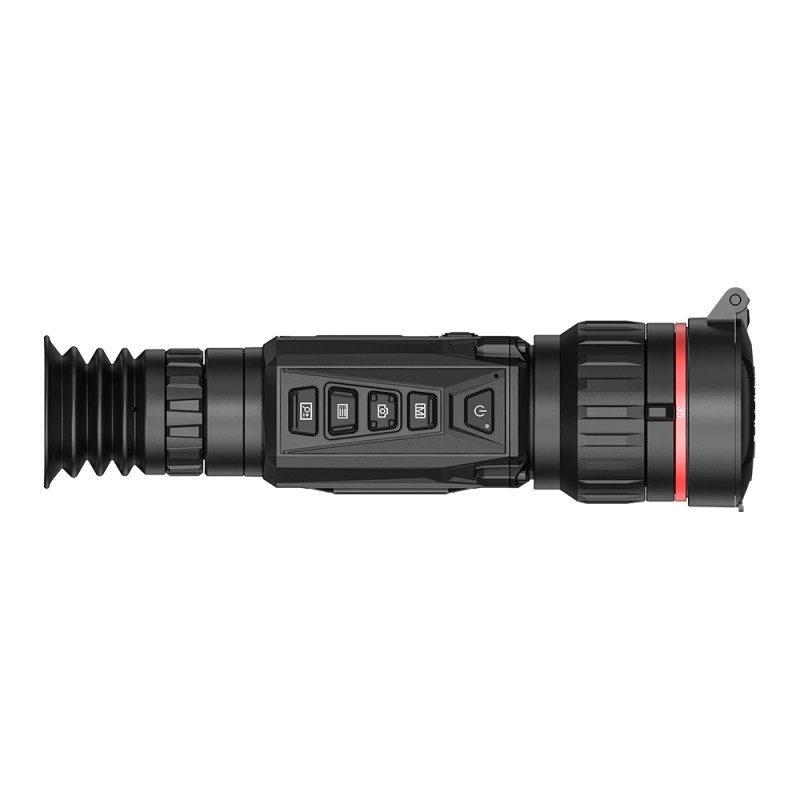

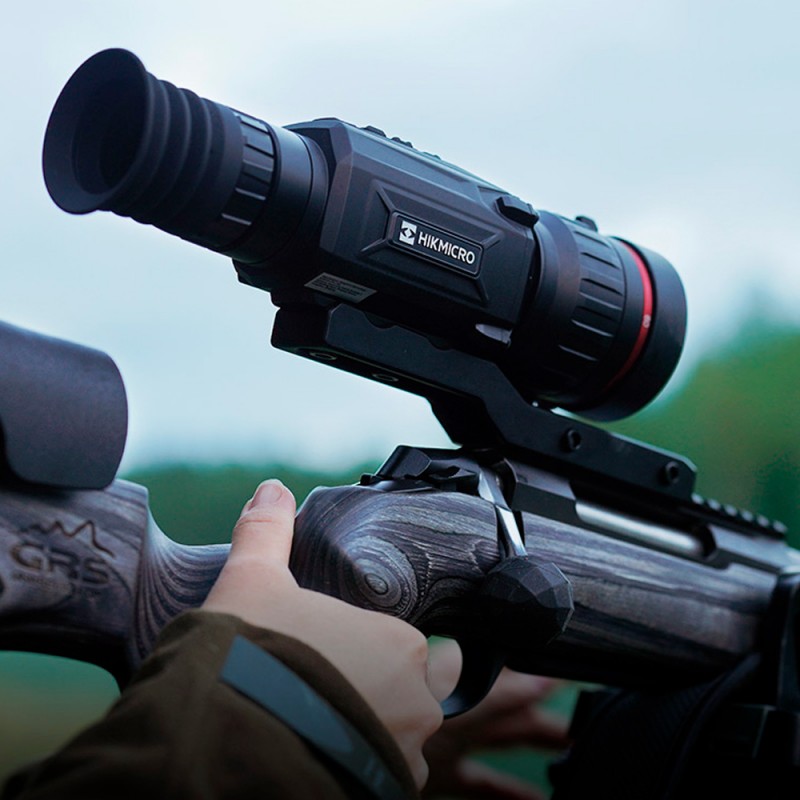

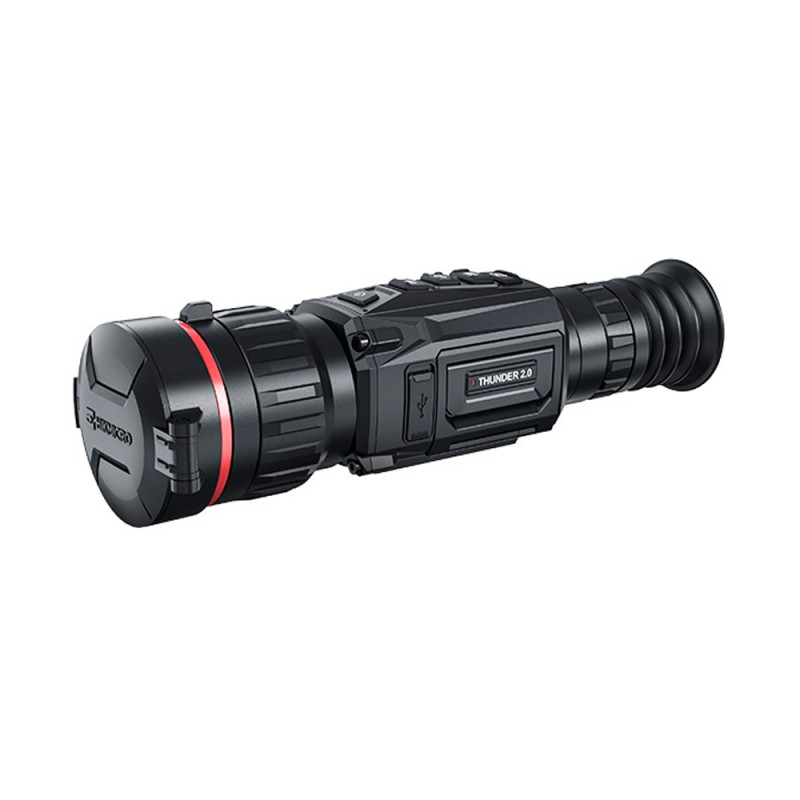

HIKMICRO Thunder Zoom TQ60Z 2.0 Thermal Scope

The Thunder TQ60Z 2.0 thermal scope features optical zoom and a 20mK thermal sensor with 640 x 512 resolution. This device is the perfect combination for use in both wooded areas with abundant vegetation and open fields. In addition, it has a 60 mm lens with a large F1.1 aperture and a maximum detection range of 3,000 meters.

*To purchase this device, the buyer's ID and weapons permit will be required in compliance with current regulations.

Main Features

• 640 × 512 resolution with 12 μm detector
• High sensitivity thermal module NETD < 20 mK (25 °C, F# = 1.0)
• Dual FOV of 35mm (F0.9) and 60mm (F1.1) lenses
• 0.39-inch OLED display with 1024 × 768 resolution
• Up to 6.5 hours of continuous operation
• Replaceable and rechargeable lithium-ion battery packs
• High impact resistance up to 1000 g/0.4 ms
• Detection range up to 3,000 m

Specs

• Image Sensor: 640 × 512 Uncooled Focal Plane Arrays
• Pixel pitch: 12 μm
• Lens: 60mm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Magnifications: 1.8x to 14.6x/3.1x to 25.0x (8x)
• Minimum focusing distance: 35mm: 7m/60mm: 9m
• Field of view: 12.5° × 10°/21.9 m × 17.6 m; 7.3° × 5.9°/12.8 m × 10.2 m
• Display: OLED, 1024 × 768
• Color palettes: Vivid black, vivid white, vivid red, fusion
• Focus: Optical zoom, focus ring
• Exit pupil: 6 mm
• Eye relief: 45 mm

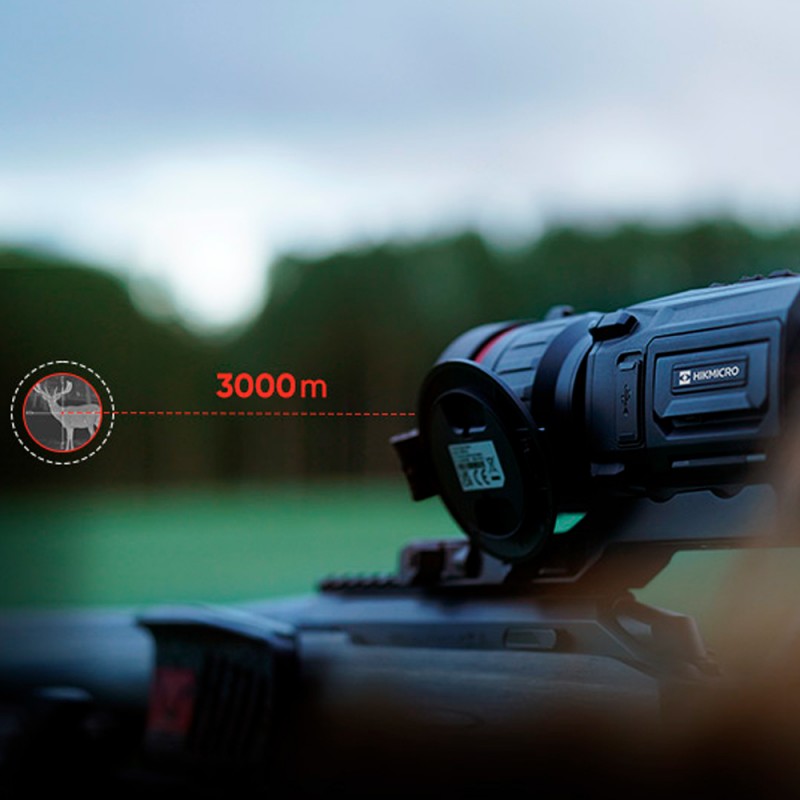

• Detection range: 3,000 meters
• Storage: Built-in memory module (16 GB) Yes
• Video recording: Yes
• Audio recording: Yes
• Capture snapshot: Yes
• Recording by reverse activation: Yes
• Maximum recoil: 1,000 g / 0.4 ms
• Brightness adjustment: Yes
• Tone Adjustment: Yes
• Distance meter: Yes
• Wifi: Yes
• Standby mode: Yes
• Battery Type: Replaceable and rechargeable lithium battery
• Operating time: Up to 6.5 hours of continuous operation
• Protection: IP67
• Working temperature: From -30 ° C to 55 ° C
• Dimensions: 254.4 mm × 68.5 mm × 80.6 mm
• Weight: 843 gr (without battery)
• Warranty: 36 months
• Sensor warranty: 10 years

Box contents

• Thunder Zoom TH60Z 2.0 Thermal Scope
• Type C Cable
• Dust cloth
• Quick Start Manual
• 2 batteries
• Case

Legal information

To purchase thermal clip-on scopes and attachments, you must be in possession of a type D weapons license and provide your full name and ID to the establishment or website where you make the purchase.

Please note before making a purchase that in order to employ or use thermal and night vision attached or mounted on a firearm, it is necessary to have an administrative resolution or extraordinary authorization from the body of the Autonomous Community or a nominal permit granted by the owner of the hunting area.

HIKMICRO SIGHT App for IOS and Android

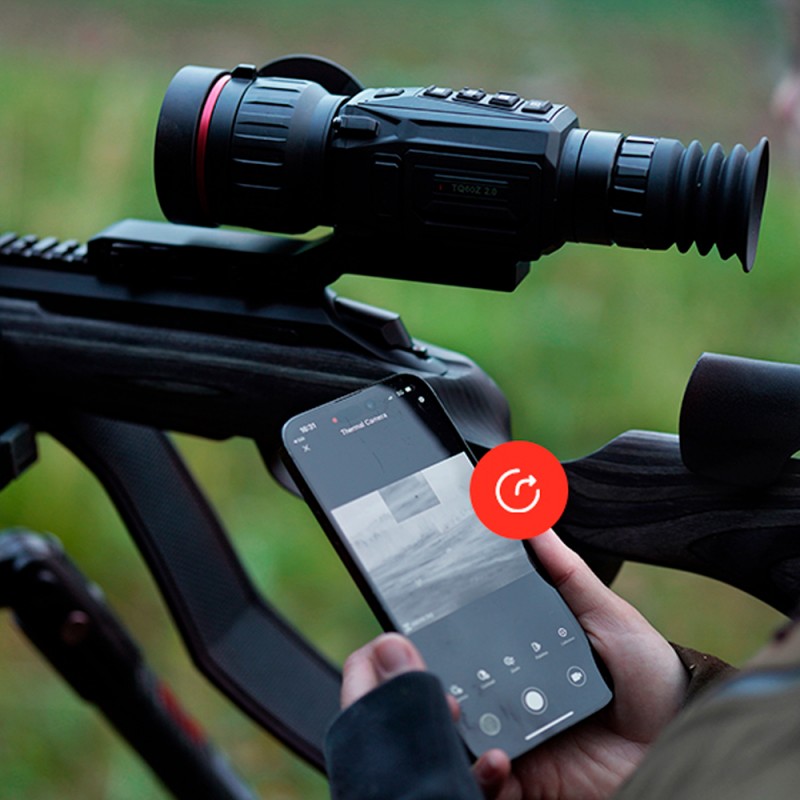

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

HIKMICRO SIGHT App for iOS
