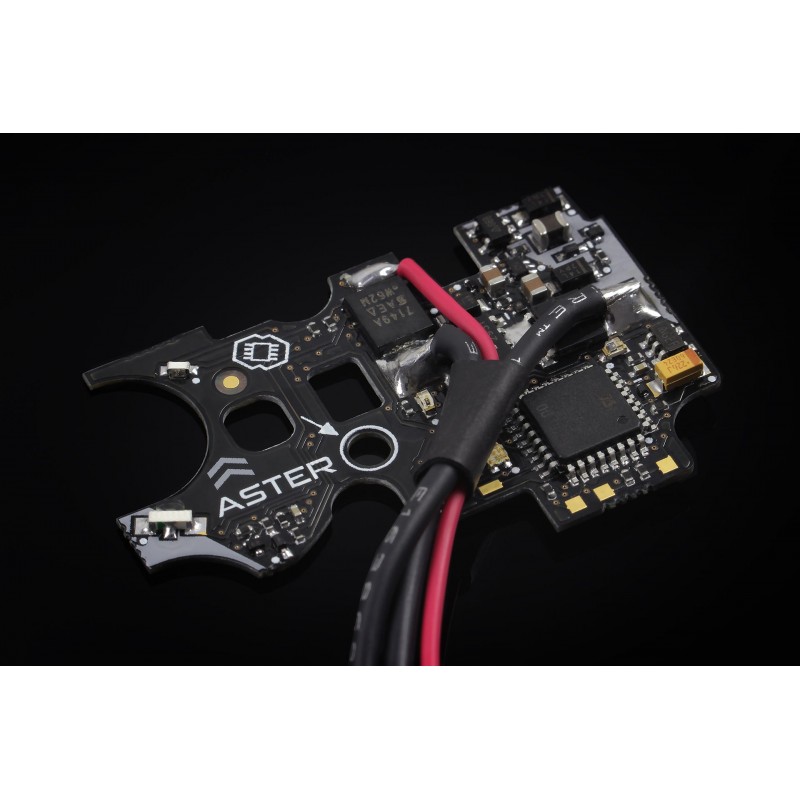

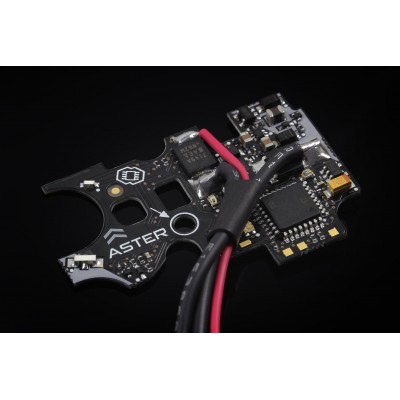

Aster V2 SE Expert (Rear Wired) [GATE]

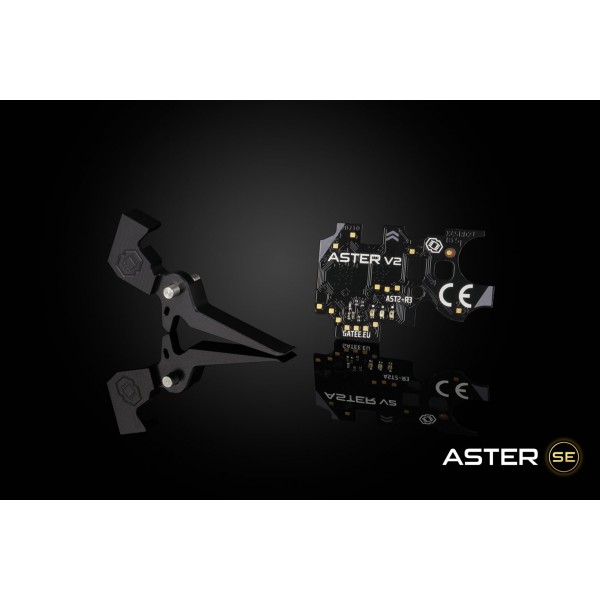

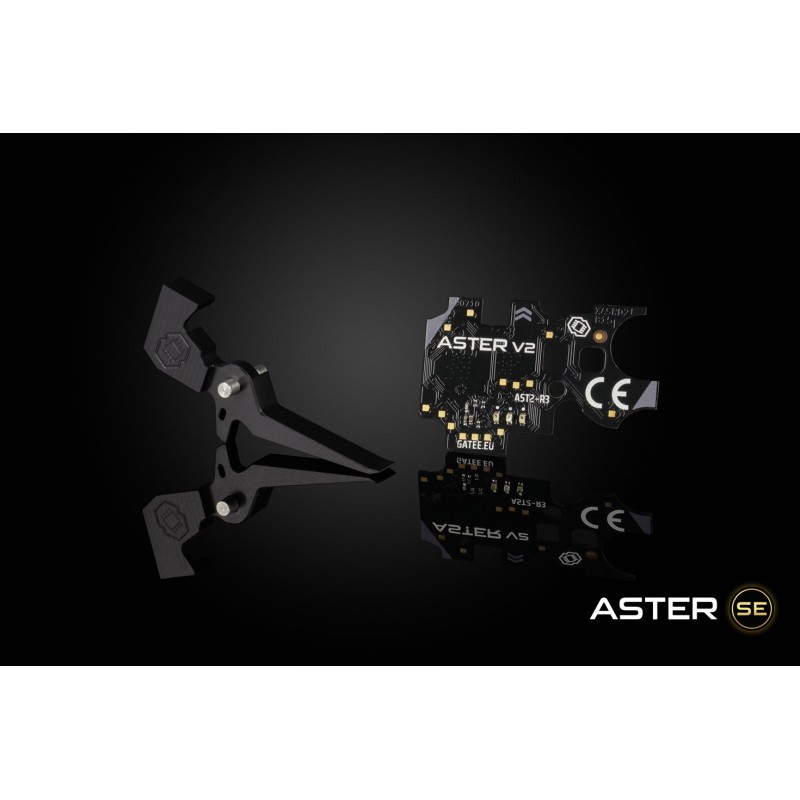

ASTER V2 SE enhances the price-performance ratio by integrating a Quantum Trigger into the set and introducing new functions programmable via the trigger. Straight out of the box, you can adjust sensitivity from a feather-light touch to full movement. The improved trigger programming offers new settings, including automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with a top-tier adaptive mode, and the innovative SAFE-SEMI-BINARY selector mode. Calibration and DTC codes are all accessible through trigger and selector movements. Additionally, the new noise-resistant trigger detection algorithm ensures precision.

ASTER’s smart fuse safeguards your AEG’s battery, motor, and controller, even against reverse battery connections. This, combined with optical sensors, makes the ASTER V2 SE one of the most durable ETUs on the market. ASTER V2 SE is not just an ordinary ETU/EFCS mosfet; it’s a comprehensive system that transforms your AEG into advanced, future-proof training equipment.

What sets ASTER V2 SE apart from the competition?
ASTER is future-proof due to its compatibility with USB-Link and Blu-Link, allowing firmware updates, new options, accessory connections, and telemetry checks.

What is an ETU?
An Electronic Trigger Unit replaces traditional trigger contacts and the cut-off lever, assuming control of your AEG.

Why is ASTER’s programming via trigger user-friendly?

• No need to rush—navigate the menu quickly or calmly.
• LED colors assist, but you can rely on motor vibration.
• If needed, use the popular USB-Link or Blu-Link with the GCS App.

What is the self-learning automatic Pre-Cocking?

• Pre-Cocking delivers a trigger response similar to a real firearm.
• Automatically sets the piston position.
• Easy to use—select from three modes: LOW, MID, or HIGH.
• Adapts automatically to battery voltage and rate of fire.

ASTER offers great flexibility and is future-proof. Today, program key functions via the trigger; tomorrow, borrow a USB-Link or Blu-Link to configure advanced settings, update firmware, run diagnostics, or use the GCS app on a smartwatch.

• Hair-trigger sensitivity: up to 60 in the first millimeter of trigger movement.
• Top-notch automatic Pre-Cocking.
• Resistant to reverse polarity.
• Firmware updates via the Internet.
• Part of the GATE Ecosystem.
• Minimal power consumption: Deep sleep mode uses just 0.29 mA, preventing battery discharge.
• Built-in voltage boost converter ensures reliable operation with weaker batteries and increases efficiency.
• 3.75 V ready—operates at very low voltage, crucial for high-tuned AEGs where voltage drops significantly under load.
• Compatible with Infinite Torque-up, DSG, SSG, 19-tooth, and standard gears.
• Mechanical trigger lock compatibility.
• Supports brushless motors.

SPECIFICATIONS

• Supply Voltage Range: 3.75-12.9 V
• Current Consumption: 23 mA
• Low Power Mode: 288 µA
• Dimensions (L x W x H): 43.8 mm x 28.7 mm x 7.2 mm
• Finished Product Weight: 22.25 g
• Operating Temperature Range: min. -15°C to max. +50°C
• Relative Humidity: ≤ 80%

Connect your ASTER V2 SE with the GCS App for complete control over your AEG. Configure the ASTER V2 SE via the trigger, USB-Link, or Blu-Link using the advanced GCS App. Technicians can update firmware, perform diagnostics, or adjust settings conveniently. Alternatively, use your own Blu-Link and the Smartwatch app for real-time data to enhance your tactical decisions.

• Control your airsoft replica from your iOS, Android, macOS, or Windows device with an additional dongle (USB-Link or Blu-Link).
• Fine-tune trigger sensitivity and other settings with ease.
• Use automatic Pre-Cocking for a trigger response akin to a real firearm.
