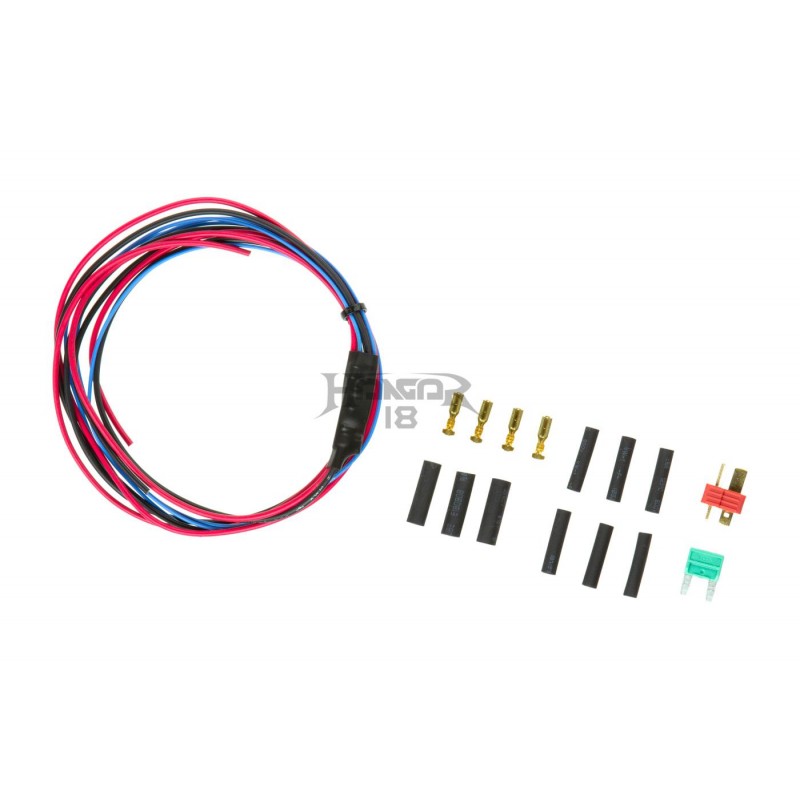

Micro Active Brake II with Wiring [Jefftron]

€26.90
Tax included
Quantity
Add to wishlist
Delivered in 1-3 weeks

  Política de segurança

(editar com o módulo Customer Reassurance)

Guarantee safe & secure checkout

MAB II is a precisely and professionally made drop-in MOSFET system with active motor-braking designed for Airsoft Electric Guns.

Active breaking solves problems with multiple shots in semi-mode in airsoft replicas with a very high rate of fire.
Mosfet increases the AEG's rate of fire and limits unnecessary battery usage.

In automatic-fire mode, the piston stops in a random position due to the gearbox design.

For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.

Device features:
  • Miniature overall dimensions of 27x10x7mm that fit most replicas available on the market.
  • Pre-soldered wires allow for faster and easier installation into the replica. Wires are provided with the additional length for user adaptation.
  • High-quality AWG16 1,5mm and signal blue wire AWG22 0.34qmm with protective coating insulation sleeve.
  • Mainboard covered with conformal coating for water resistance
  • Designed for springs up to M160 (equivalent for current 75A single-shot fire or 25A burst fire for max. 30s).
  • Designed for popular batteries up to 17V (Ni-xx 8.4 - 12V, Li-Po 7.4 - 14.8V).
  • No current consumption in the idle mode and no sparking on the switch contacts.


11247200000
17 Items

Data sheet

Weight
Length packed
Width packed
Height packed
Weight packed
