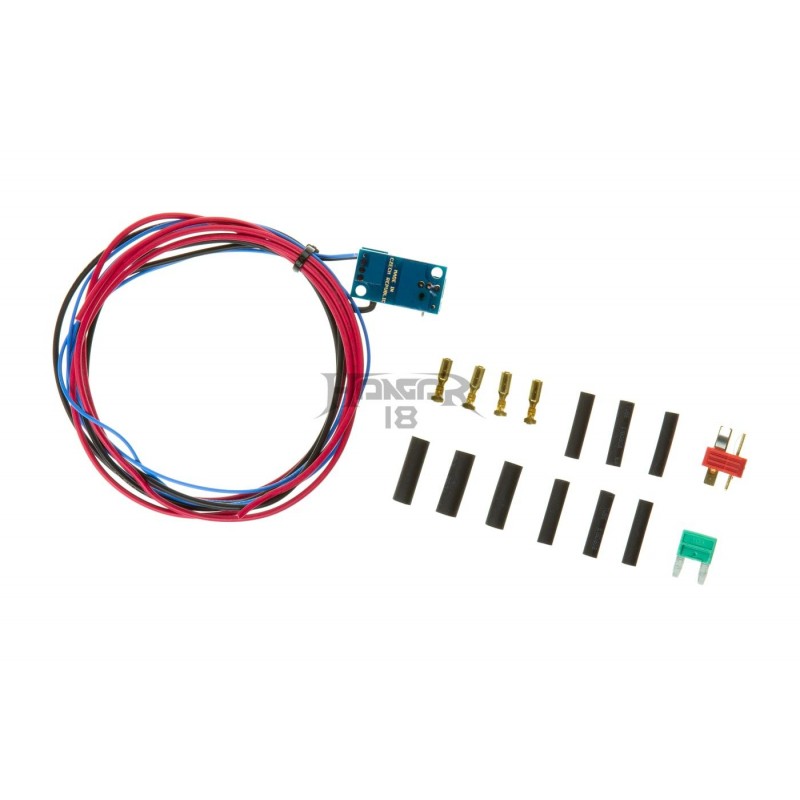

Switch Brake with Wiring [Jefftron]
- Write a review
€31.90
Tax included
Política de segurança
(editar com o módulo Customer Reassurance)
Guarantee safe & secure checkout
Precisely and professionally made drop-in MOSFET system with active motor braking designed for Airsoft Electric Guns in the specific V2-type gearbox. The device is installed in the place of the standard micro switch in the gearbox.
Active breaking solves problems with multiple shots in semi-mode in airsoft replicas with a very high rate of fire.
Mosfet increases the AEG's rate of fire and limits unnecessary battery usage.
In automatic-fire mode, the piston stops in a random position due to the gearbox design.
For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.
Device features:
Active breaking solves problems with multiple shots in semi-mode in airsoft replicas with a very high rate of fire.
Mosfet increases the AEG's rate of fire and limits unnecessary battery usage.
In automatic-fire mode, the piston stops in a random position due to the gearbox design.
For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.
Device features:
- Simple installation inside the V2-type gearbox in place of the original microswitch
- Pre-soldered wires allow for faster and easier installation into the replica. Wires are provided with the additional length for user adaptation.
- Two high-quality AWG16 1,5mm wires with a length of 300 and 700 mm. Blue AWG24 0.34qmm wire with protective coating insulation sleeve and a length of 1000 mm.
- Mainboard covered with conformal coating for water resistance.
- Designed for springs up to M160 (equivalent for current 75A single-shot fire or 25A burst fire for max. 30s).
- Ideal for popular batteries up to 17V (Ni-xx 8.4 - 12V, Li-Po 7.4 - 14.8V).
- No current consumption in the idle mode and no sparking on the switch contacts.
11247600000
12 Items
Data sheet
- Weight
- Length packed
- Width packed
- Height packed
- Weight packed
