Titan V2 Basic Module Front Wired Semi Only [Gate]

This Mosfet is intended for the German market, it can only be used for semi-automatic shooting. A conversion or reprogramming to fully automatic is not possible.

TITAN™ is a drop-in MOSFET which will transform your AEG into an advanced training weapon system. Extremely fast trigger response and 20 special functions give the user the tactical advantage of adjusting the rifle capability to every mission requirements.

This version is intended for rifles with wires protruding to the front and is intended for the German market. It can only be used for semi-automatic shooting and conversion or reprogramming to fully automatic is not possible.

TITAN V2™ Basic Module is the optimal cost-effective option for users with TITAN in two or more airsoft guns because the user does not need the second USB-Link from the Advanced or Complete set. It includes TITAN with BASIC firmware edition.

The BASIC firmware edition is an economic version with limited number of functions, dedicated for those who prefer simplicity but require the highest quality. If you decide to have more functions, there is always an option to upgrade firmware from BASIC to ADVANCED.


Key functions:

TRIGGER SENSITIVITY ADJUSTMENT - allow to adjust trigger sensitivity to user preference and skill without the need to disassemble the rifle.

CONFIGURABLE FIRE SELECTOR (gen.2) - gives the option to program fire selector. There are up to six modes: - STOCK WIRING SEMI/AUTO

CYCLE DETECTION - TITAN precisely detects in which position the cycle should finish.
Therefore, even the shortest trigger action produces at least one full cycle.

PRE-COCKING (gen.2) - provide a trigger reaction similar to a real gun. It allows for initial spring compression, which speeds up the trigger response significantly. There are three BOOST options: HIGH / MID / LOW and PRE-COCKING MODES:

• AUTO MODE – the spring is automatically compressed after each shot,

• TRIGGER MODE – the first trigger action compresses the spring, and the second trigger action fires the shot.

ROF STAB - allows to change the way the ROF Control works:

• ON - ROF Control uses PWM to decrease ROF. Thanks to this gearbox works smoothly what decreases wear and tear of AEG internal parts.

• OFF - ROF Control adds breaks between shots to decrease ROF. It gives more realistic experience.

SNIPER DELAY - incorporate delay between each SEMI shots to simulate the delay from reload or recoil. It can be set at 0.5s, 1s, 2s or 3s delay.

SMART TRIGGER - enables faster trigger response. It works with the ROF Control system. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full rate of fire, and subsequent shots at a reduced ROF.

BATTERY PROTECTION (gen.2) - against Over-Discharge of the Battery. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing. When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals.

SMART FUSE - electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes an AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.

MOSFET transmits the energy from the battery directly to the motor, bypassing the traditional mechanical trigger contacts. As a result, the replica gains a higher rate of fire, faster trigger response, and the contacts are protected against burn out.

BUILT-IN SELF-TEST This allows you to quickly check whether the device is working properly.

COATING - Thanks to its special coating the product is resistant to atmospheric conditions (Military Specification MIL-V-173C).

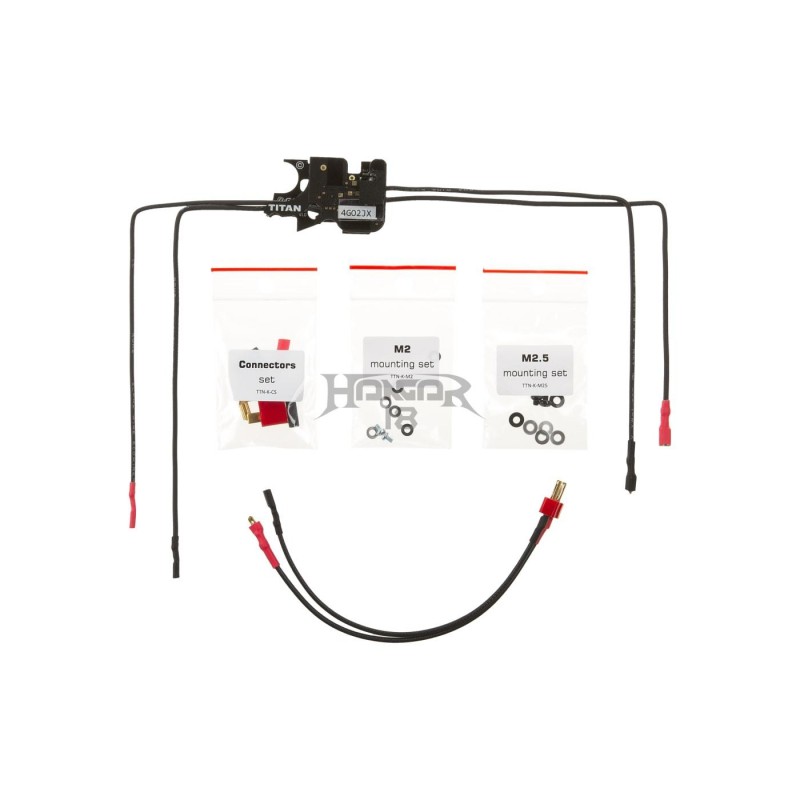

ncluded in the kit:

• TITAN V2 with BASIC firmware edition (rear wired)
• Installation Kit
• Quickstart Guide

NOTICE! In order to configure TITAN, you need the USB-Link or Tactical Programming Card which is not included in this kit.
