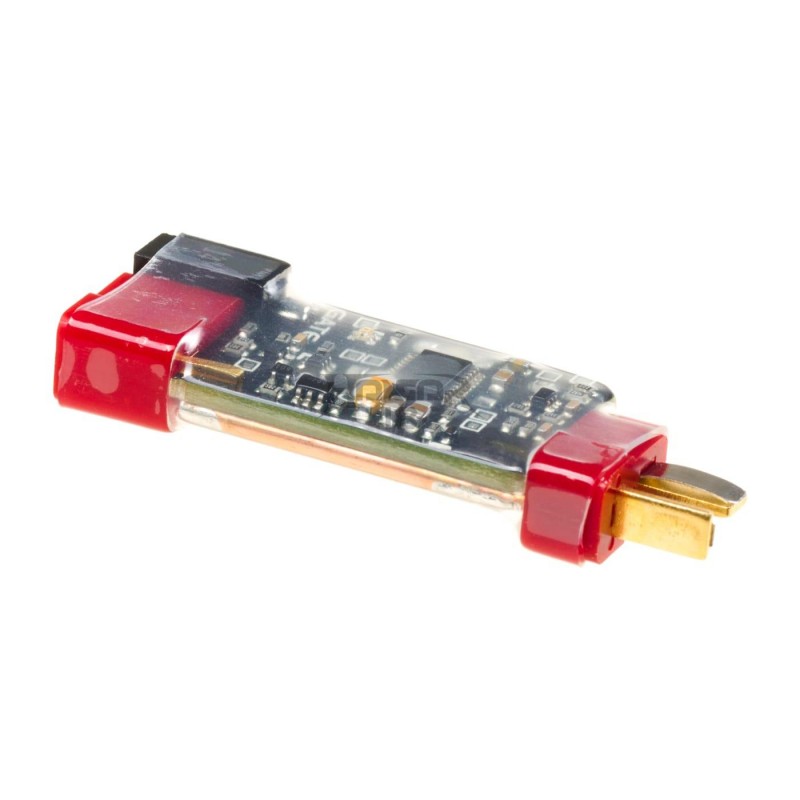

WarFET AEG Control System [Gate]

WARFET is GATE’s most advanced AEG Control System. It has 20 functions and almost 6 million possible configurations. The outstanding Tactical Programming Card provides the user with very easy access to the WARFET Power Module settings.

Thanks to the Smart Trigger and Pre-cocking functions, trigger response is similar to a real gun. The Programmable Burst (1-5 rounds) enables you to fire a pre-determined number of BBs. Another function is ROF Control, which allows you to reduce ROF, so you can use strong LiPo batteries, and still have ROF just like in a real rifle.

If your AEG becomes jammed, the Smart Fuse protects the battery and the motor against damage. Moreover, with WARFET you get: Mosfet, ON/OFF Active Brake, Built-in self-test, Debouncing, and more. Many useful functions, great electrical specifications and conformal coating (military specifications: MIL-V-173C) make the AEG Control System able to meet the needs of most experienced airsoft players.

SUPER-EASY INSTALLATION - JUST PLUG&PLAY, NO SOLDERING REQUIRED

MOSFET transmits the energy from the battery directly to the motor, bypassing the traditional mechanical trigger contacts. As a result, the replica gains a higher rate of fire, faster trigger response, and the contacts are protected against burn out.

ACTIVE BRAKE in SEMI Mode does not allow for compressing a piston after a shot. The piston will stop in the front position which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts. This is important, especially in AEG power upgrade.
ON/OFF ACTIVE BRAKE The Controller provides the option to decide if you want to use the Active Brake function. If you do not need this, you can turn it off easily. It will lead to improving the lifespan of your motor.

ELECTRONIC FUSE – the unit has thermal protection for increased durability and in combination with a time-lag fuse, it fully protects your AEG installation.

DEBOUNCING - provides full compatibility with micro-switches. It ensures complete resistance to contact bounce and thanks to it the replica gain a bigger ROF, a faster trigger response and the MOSFET is less prone to overheating.

BATTERY PROTECTION - against Over-Discharge of the Battery. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing.

SMART TRIGGER - enables faster trigger response. It works with the ROF Control system. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full rate of fire, and subsequent shots at a reduced ROF.

CONFIGURABLE FIRE SELECTOR - gives the option to program fire selector. There are five modes:

• STOCK WIRING SEMI/AUTO
• STOCK WIRING SEMI/BURST
• MODIFIED WIRING SEMI/AUTO
• MODIFIED WIRING SEMI/BURST
• MODIFIED WIRING BURST/AUTO

TACTICAL PROGRAMMING CARD - provide the user with easy access to the AEG Controller settings which allows the user to configure it in the field.
PRE-COCKING - provide a trigger reaction similar to a real gun. It allows for initial spring
compression, which speeds up the trigger response significantly.

PRE-COCKING MODES:
1) AUTO MODE – the spring is automatically compressed after each shot,
2) TRIGGER MODE – the first trigger action compresses the spring, and the second trigger action fires the shot.

PROGRAMMABLE BURST

• enables to shoot a pre-determined number of BBs (1-5 rounds). It can be set in position AUTO MODE to BURST MODE or SEMI MODE to BURST MODE.

SMART FUSE - electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes an AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.

BATTERY PROTECTION - against Over-Discharge of the Battery. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing.

BUILT-IN SELF-TEST This allows you to quickly check whether the device is working properly.
COATING - Thanks to its special coating the product is resistant to atmospheric conditions (Military Specification MIL-V-173C).

14.8V LI-PO READY The system can be used with batteries up to 14.8V LI-PO. Minimum operating voltage is 3V and the maximum voltage is 17V.

Please note: using PRE-COCKING increases wear and tear on the gearbox. PRE-COCKING is designed for SEMI mode. In the AUTO mode, it can result in blank shots.

Included in the kit:
Tactical Programming Card
WARFET Power Module
Battery Mini Tamiya adapter
AEG Mini Tamiya adapter
Pair of Deans-T Connectors
Single Trigger Wire
Double Trigger Wire
Quickstart Guide
Warning: GATE does not guarantee the compatibility of mosfets and ETUs such as TITAN or ASTER with brushless motors. Connection of a brushless motor can cause immediate damage to the device, motor and battery, that is not covered by the warranty and can lead to a fire.
