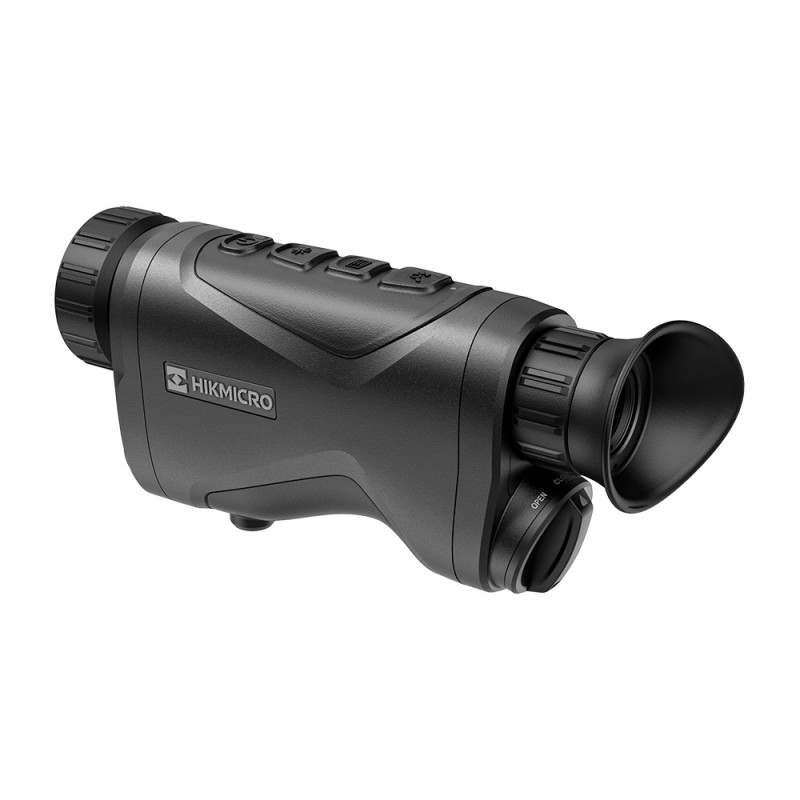

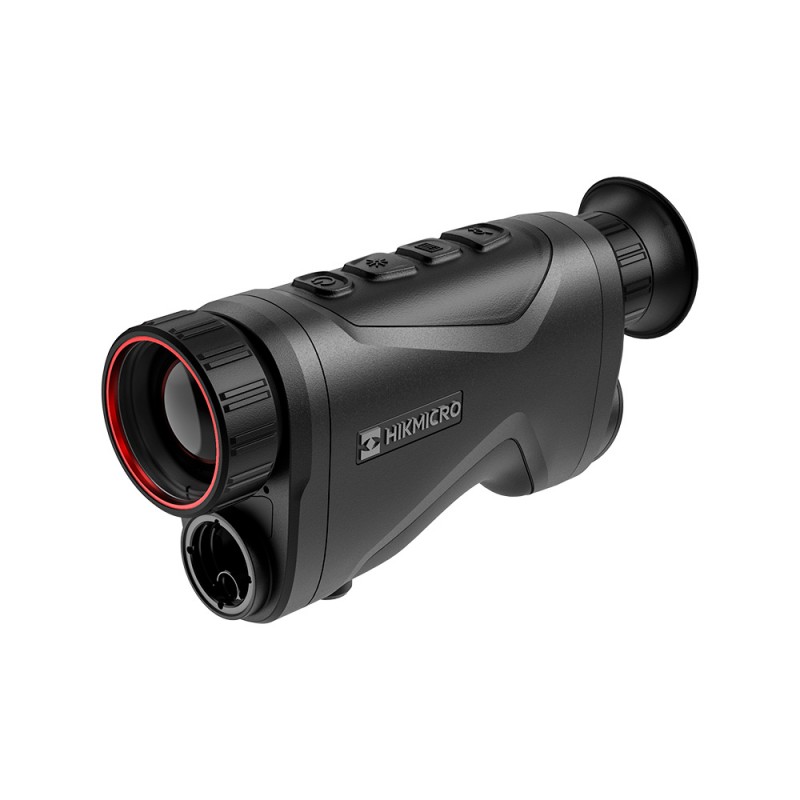

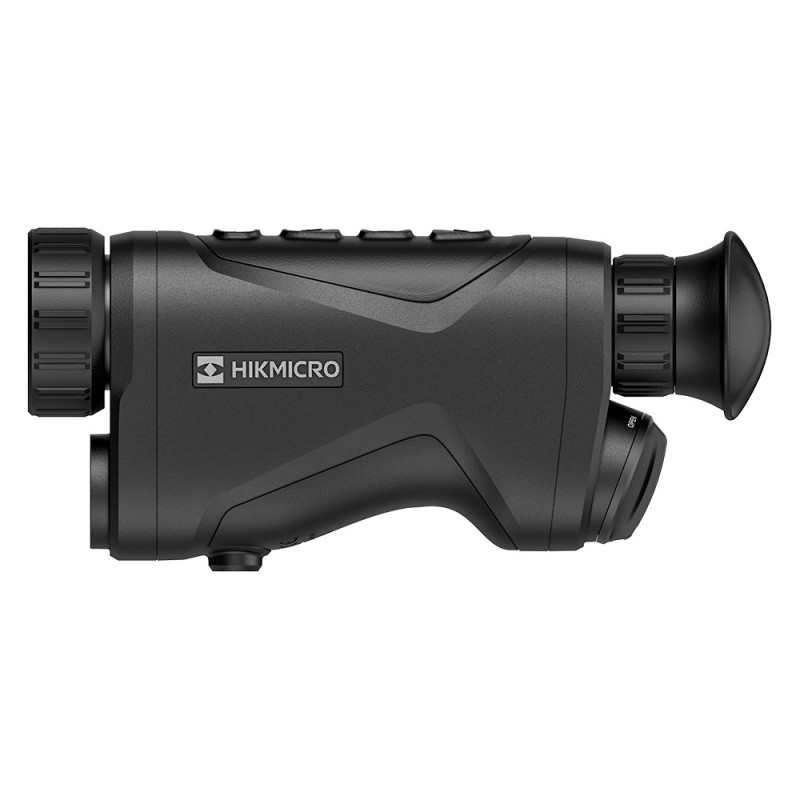

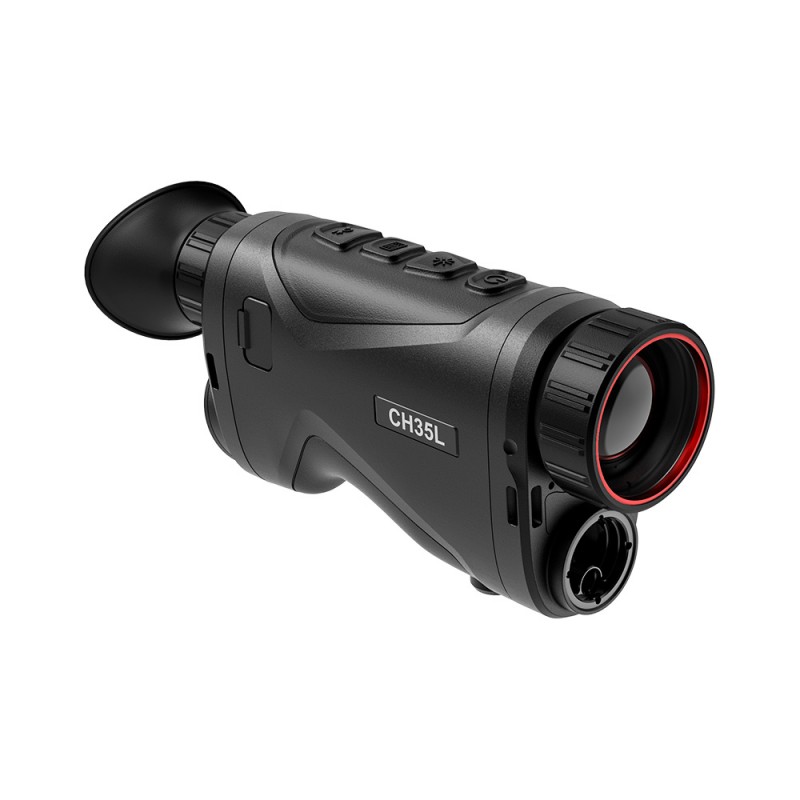

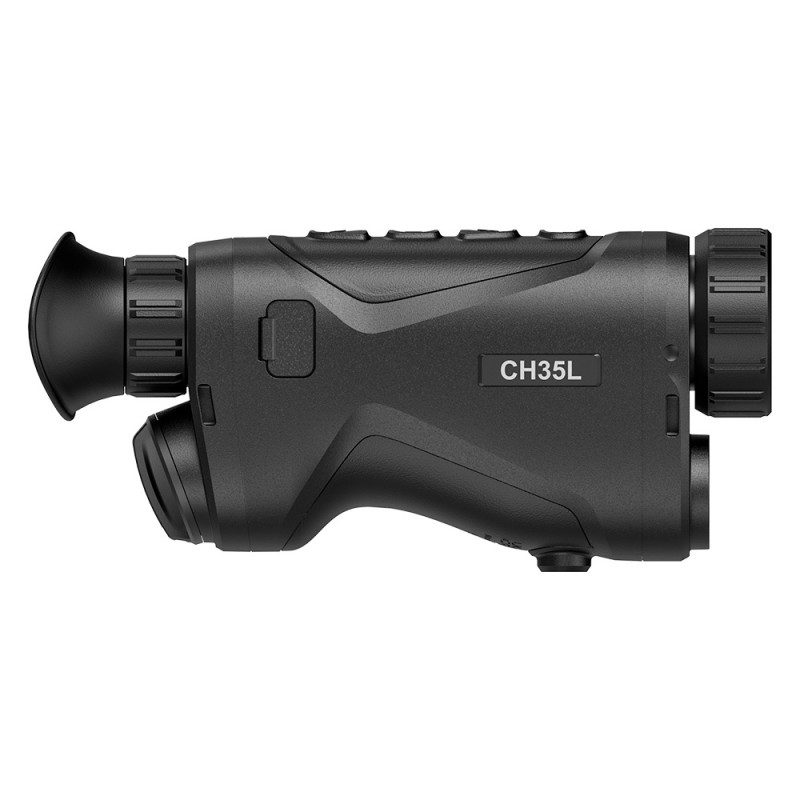

HIKMICRO Condor CH35L Thermal Monocular with Rangefinder

HIKMICRO CONDOR CH35L Thermal Rangefinder Monocular is equipped with a 384×288@12μm thermal sensor and a 1024×768 OLED display. With a NETD of less than 20 mK, representing high thermal sensitivity, it ensures perfect image quality and detail recognition even in the harshest weather conditions. Its built-in laser rangefinder of up to 1,000 meters can accurately measure the distance when you are observing in low-light conditions. It can be mainly used in forest hunting, bird watching, animal searching, and adventure.

Main Features

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12 μm detector
• 0.39-inch OLED display with 1024 × 768 resolution
• Advanced image processing technology
• Image Pro to improve detail recognition
• Zoom Pro for digital zoom without loss of image quality
• Replaceable and rechargeable 18650 lithium-ion battery
• Up to 4.5 hours of continuous operation
• 400 grams of weight with a compact and ergonomic design

Technical specifications

• Image Sensor: VOx 384 × 288 Uncooled Focal Plane Arrays
• Pixel pitch: 12 μm
• Response waveband: 8 μm 14 μm
• Lens: 35mm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Field of view: 7.5° × 5.6° (H × V)
• Magnifications: 3.5 to 28x (8x)
• Display: OLED 1024 x 768 px
• Frame rate: 50 Hz
• Color palettes: Vivid black, vivid white, vivid red, fusion
• Hot track: Yes
• Detection range: 1,800 meters
• Laser Rangefinder: Class 1
• Wavelength: 905nm
• Maximum measuring range: 1,000 meters
• Minimum measuring range: 10 meters
• Measurement accuracy: ± 1 m
• Record video: Yes
• Capture snapshot: Yes
• Wifi: Yes
• Standby mode: Yes
• Power: Replaceable and rechargeable 18650 lithium-ion battery
• Operating time: Up to 4.5 hours of continuous operation.
• Protection: IP67
• Working temperature: From -30 ° C to 55 ° C
• Dimensions: 184.9 mm × 53 mm × 87.8 mm
• Weight: 400 gr (without battery)
• Warranty: 36 months
• Sensor warranty: 10 years

Box contents

• HIKMICRO Condor Thermal Monocular with Rangefinder
• 2 18650 replacement batteries
• USB-C cable
• Dual port external charger
• Protective bag
• Cleaning cloth
• Quick Start Guide

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

HIKMICRO SIGHT App for iOS
