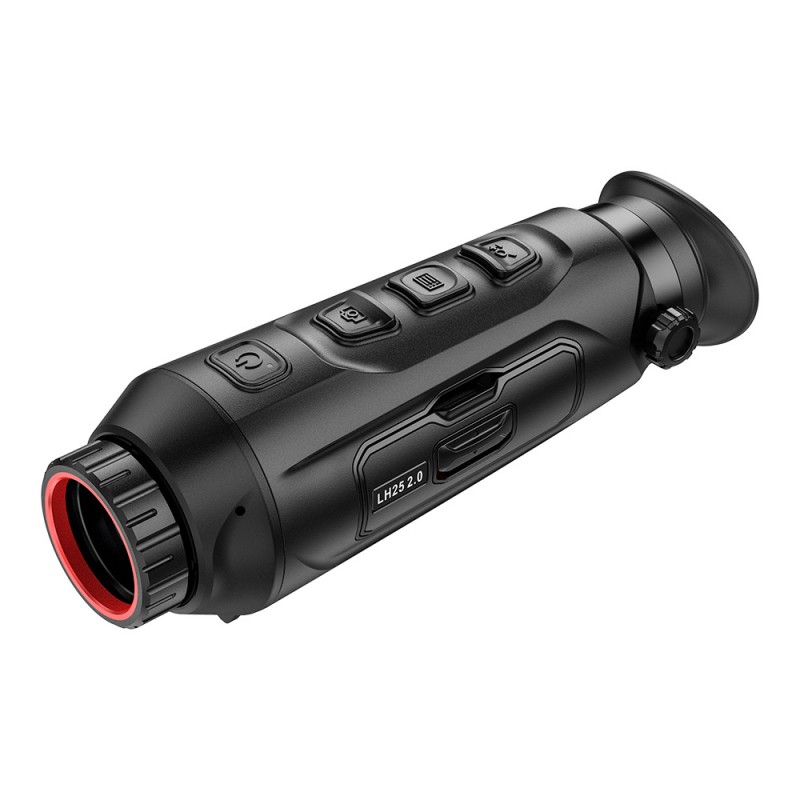

Equipped with a powerful 25mm objective lens and an advanced 384 x 288 sensor with 12 micrometer detector, the HIKMCRO LYNX Pro LH25 2.0 thermal monocular captures highly detailed images at short and medium distances with a high thermal sensitivity of NETD < 20 mK. With its exceptional capabilities, the Hikmicro Lynx Pro monocular effectively detects at distances of up to 1200 meters.
Main Features
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- Resolution of 384 × 288 with 12μm detector.
- 0.39-inch OLED display with 1024 × 768 resolution
- Replaceable and rechargeable 18650 lithium-ion battery
- 275g lightweight, with a compact and ergonomic design
- Up to 6.5 hours of continuous operation
Specs
Thermal module
- Image Sensor: Uncooled VOx Focal Plane Arrays
- Resolution Resolution: 384 × 288
- Frame rate: 50 Hz
- Pixel pitch: 12 μm
- Response waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Lens (focal length): 25mm, f1.0
- Detection range: 1200m
- Min. Focus distance: 2.5 m
- Magnification: 2.4x to 19.2x (8x)
- Field of View (H × V), Degrees / m @100m: 10.5° × 7.9°/ 18.4 m×13.8m
Screenshot
- Display: 1024 × 768, 0.39 inches, OLED
- Palettes: Warm Black, Warm White, Warm Red, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit pupil: 6 mm
- Eye relief: 20mm
- Diopters (range): -5 D to +3 D
- Brightness adjustment: Yes
- Tone Adjustment: Cool, Warm
- Contrast Adjustment: Yes System
- Record video: Yes
- Snapshot Capture: Yes
- Audio Recording. Yes
- Standby mode: Yes
- Storage: Built-in EMMC (16GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance measurement: Yes
Feeding
- Battery Type: Replaceable and Rechargeable 18650 Li-ion Battery
- Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function disabled (@25°C)
- Type-C Power Supply: 5VDC, 2A Supports External Power Supply
General
- Protection level: IP67
- Dimensions: 172.5 mm × 56.0 mm × 60.8 mm
- Weight: 277 g without battery
- Operating temperature: -30°C to +55°C
Box contents
- LYNX Pro LH25 2.0.
- USB cable
- Dust cloth
- Protective bag
- Wrist strap
- Charger
- 2 18650 batteries
- User manual
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
HIKMICRO Sight App for Android
HIKMICRO SIGHT App for iOS
