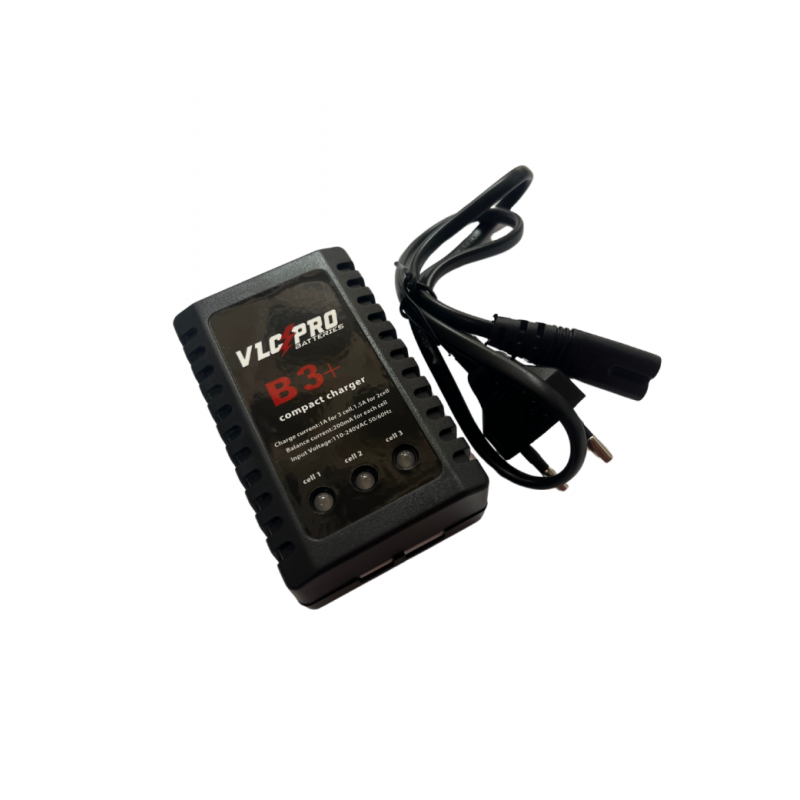

B3+ 20W Charger for LiPo Batteries ]iPower]

The VLC B3 PLUS charger, known for its ease of use and compact design, is an essential tool for charging 2 and 3-cell batteries. This device comes equipped with JST-XH connectors for both cell configurations and features three LEDs indicating its operational status. Its charging range covers batteries from 350mAh to 1000mAh and benefits from independent charging circuits for greater efficiency.

To use the VLC B3 PLUS, simply plug it into the electrical outlet. You'll notice the LEDs light up in green, signaling that the charger is ready for use. When you connect the battery to the corresponding terminal (2S or 3S), the LEDs will change to red, indicating that charging is in progress. As each cell reaches its full charge, its corresponding LED will turn back to green. Once all LEDs are green, the charging is complete, and your batteries are ready for use.

CAUTION! This unit suitable for Li-Po battery only.

Specification:
Charge current: 1.6 A for 3 cell, 2 A for 2 cell
Balance current: 200mA for each cell
Display: 3x Bicolor LED
Max. Charging Current: 3x 1600mA
Size: 100mm * 60mm * 35mm

Instructions:
1) Please firstly connect the B3+ charger to power, while the three power LEDs will furn from red to green, which indicating that the charger works in good order.
2) (Set 3s battery pack for example) Secondly, please connect the battery pack to 3s balance port, while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.
3) When the three power LEDs all turn green, the charging for 3S battery pack is finished.

NOTICE! The charger is covered only by starting warranty.

WARNING!
· Please use this charger under supervision.
· Please place the charger in a dry environment and keep it away from fire.
· Please don't tightly pull and drag the power cord or replace it, or else the fire/electric shock will be coused.
· Please don't touch the charger and power with wet hands or it will bring in electrick shock.
· To extend the working life of the charger, please remove it from power once charging is finished.
· Children must be watched by adults to use the charger.

Never leave the battery pack unattended. Especially do not connect it to the charger for the whole night!
When charging the battery, it is recommended to put it in the "safety battery charging bag".
Avoid short-circuits and mechanical damage to the battery.
Mechanical damage or improper battery charging may lead to the fire of the battery!
