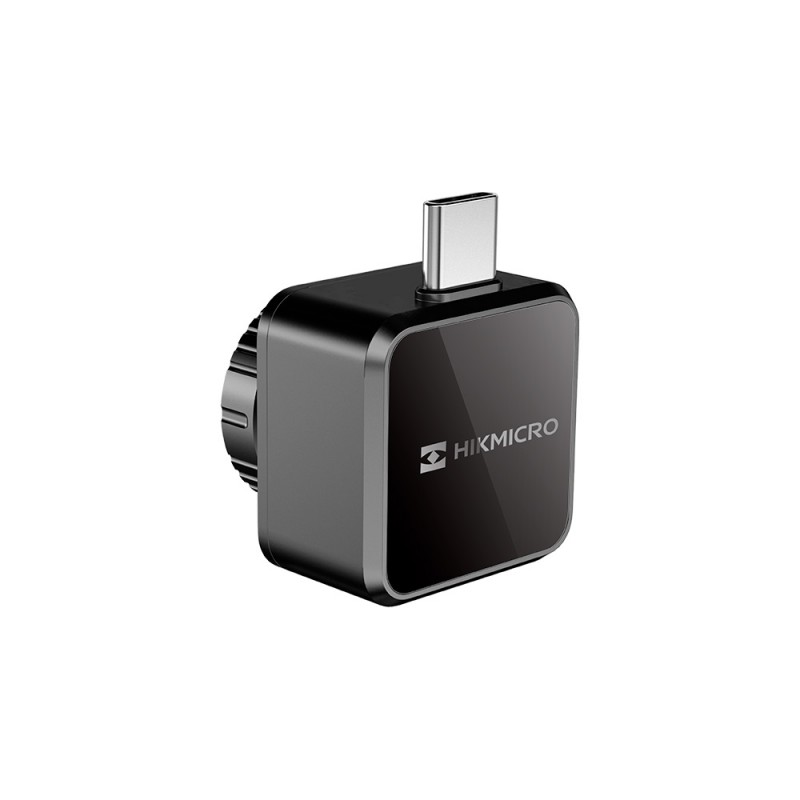

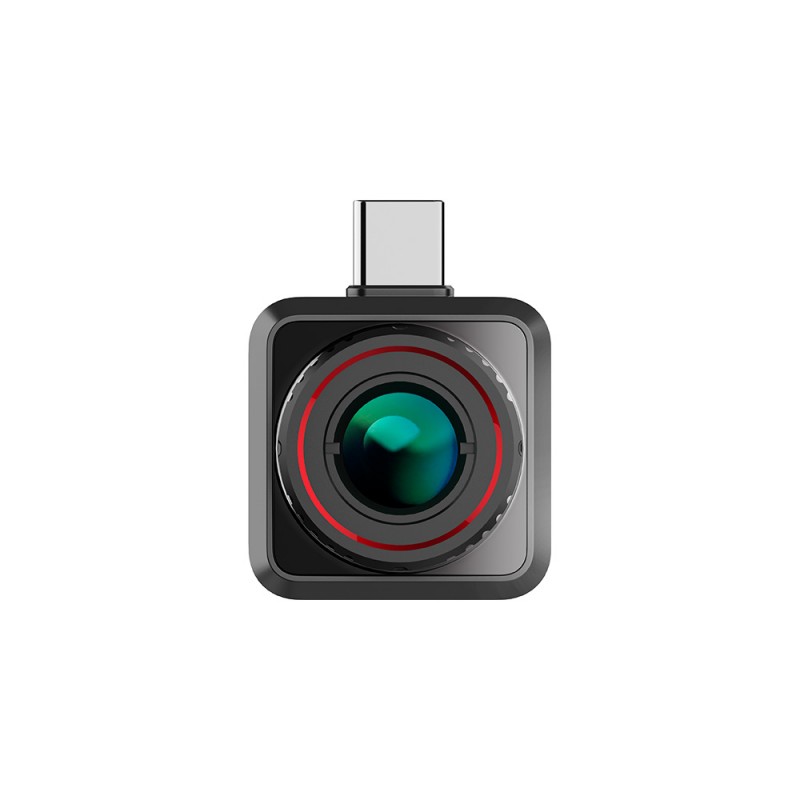

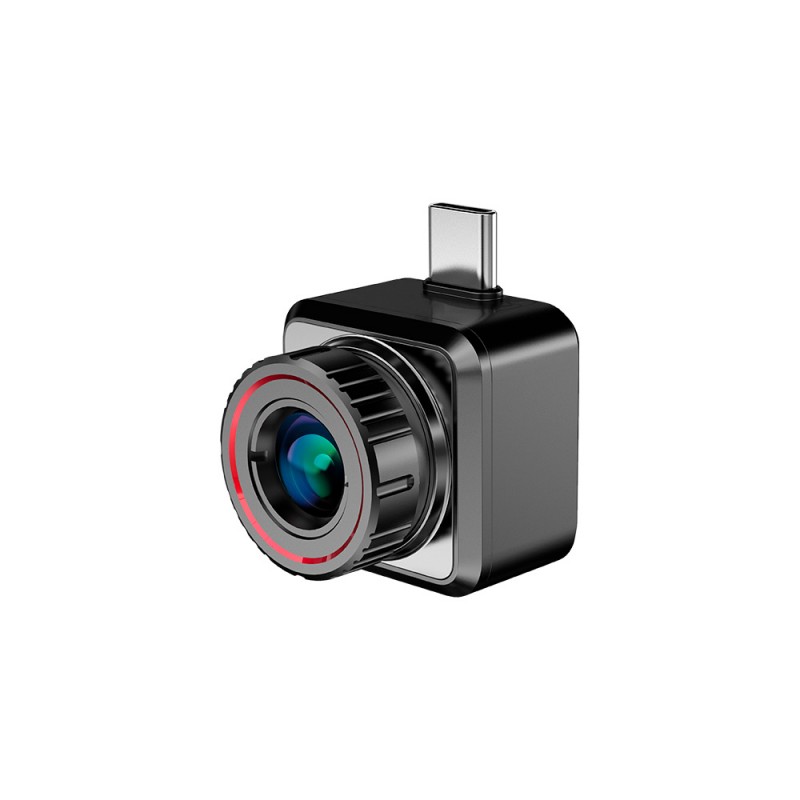

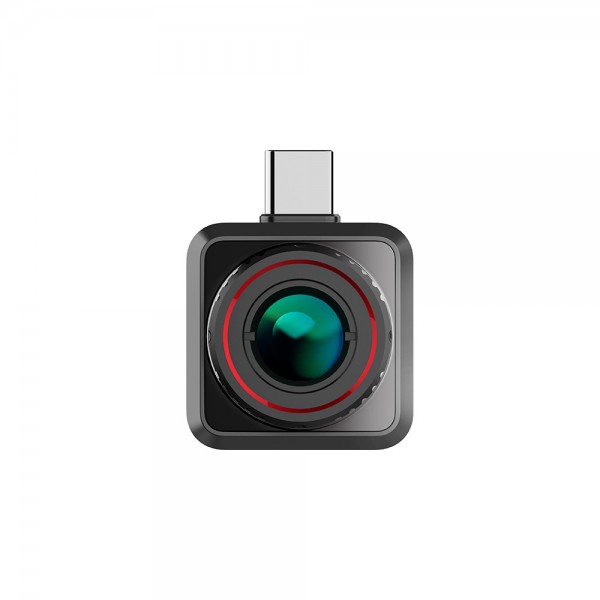

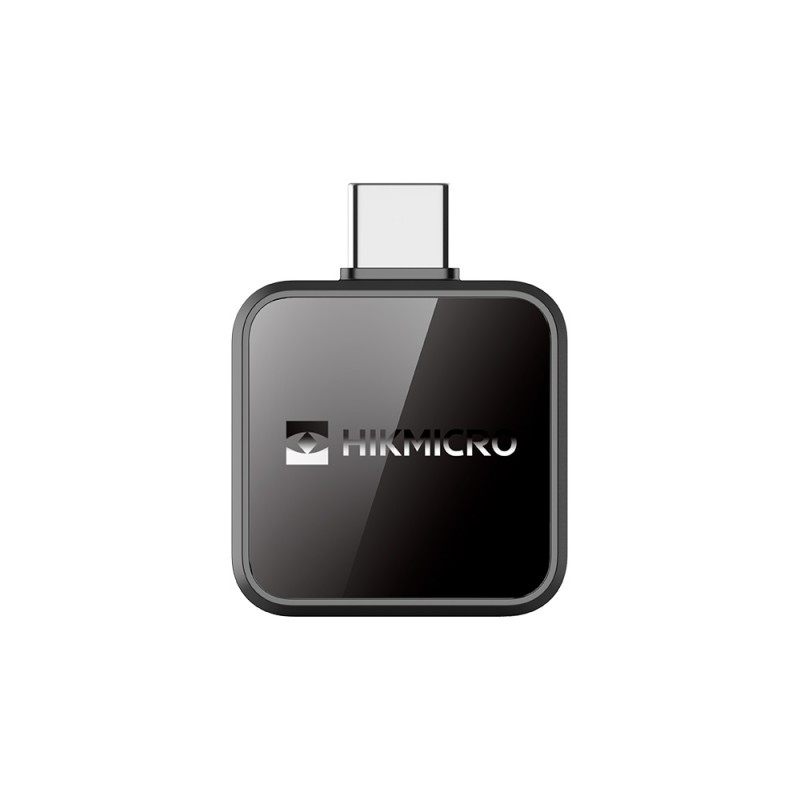

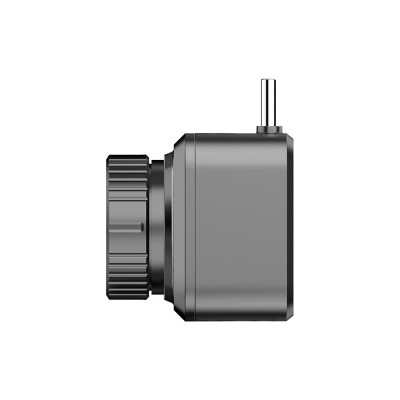

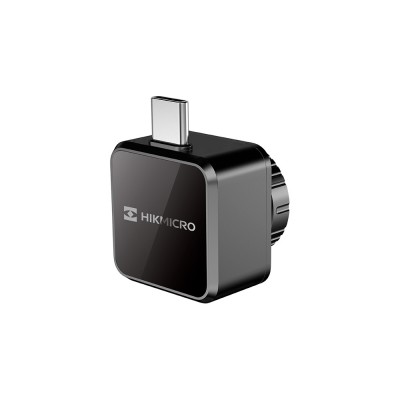

HIKMICRO Explorer E20 Plus Thermal Camera for Smartphones

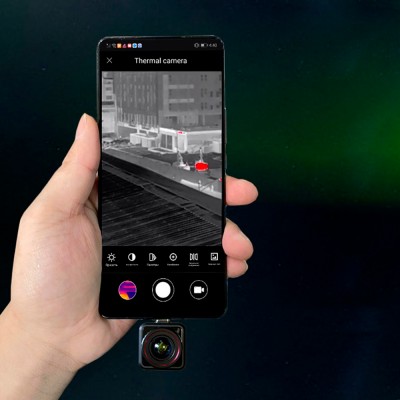

The E20Plus smartphone thermal camera is designed for outdoor enthusiasts, such as bird watching, hiking, camping, sports and concerts. Equipped with the functional HIKMICRO Sight app, the E20Plus allows you to obtain thermal images on your phone with USB Type-C connector.

MAIN FEATURES

• Vox uncooled focal plane array sensor with 256 × 192 resolution
• NETD: ≤ 50 mK (@ 25°C, F# = 1.0)
• Portable size: 26g (weight)
• USB Type-C
• Supports 3D DNR, image enhancement
• Supports video recording and image capture

TECHNICAL SPECIFICATIONS

THERMAL MODULE

• Image Sensor: Vox Uncooled Focal Plane Array Sensor
• Maximum resolution: 256 × 192
• Refresh rate: 50 Hz
• Pixel pitch: 12 μm
• Response waveband: 8 μm to 14 μm
• NETD: ≤ 50 mK (@ 25°C, F# = 1.0)
• Lens: 9.7mm

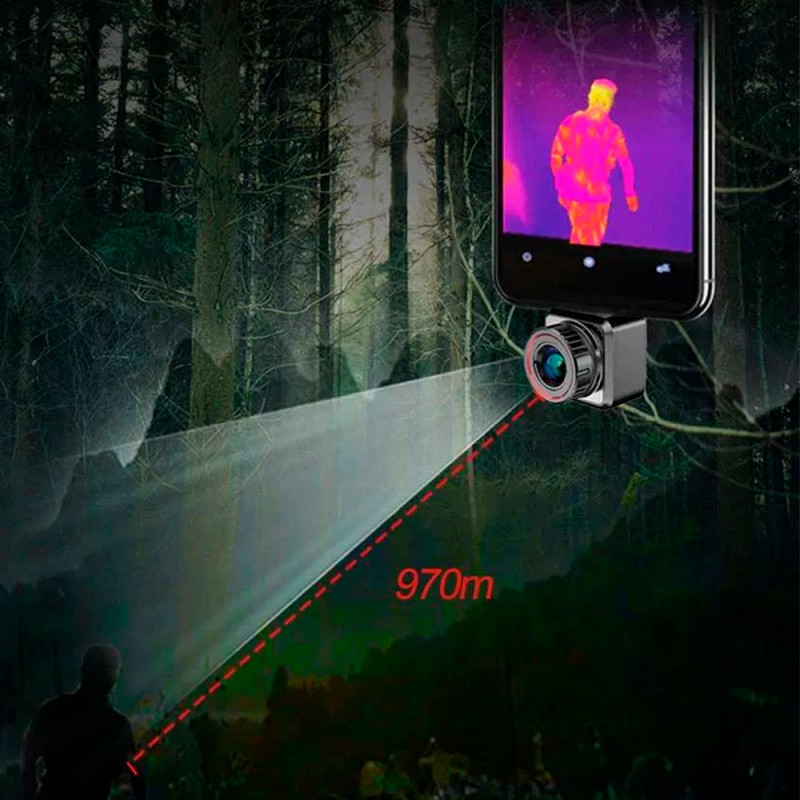

• Detection range: 970 m
• Aperture: F1.0
• Magnification: 1 ×
• Field of View (H × V), Degrees/M @ 100M: 18.1° × 13.6° / 31.8 m × 23.8 m

SCREEN

• Image Modes: Bird Watching/Red Hot/White Hot/Black Hot/Rainbow/Ironbow
• Contrast Adjustment: Contrast adjustable from 0 to 100 by slider
• Brightness adjustment: Contrast adjustable from 0 to 100 by slider

SYSTEM

• Video recording: Yes
• Image Capture: Yes
• PIP (Picture in Picture): Yes

CHARACTERISTICS

• Power supply: USB Type-C
• Power consumption: 360 mW
• Working temperature: -10°C to 50°C
• Dimensions: 26.6mm × 26.6mm × 27.2mm
• Weight: 26 g
• Protection: IP40

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

HIKMICRO SIGHT App for iOS
