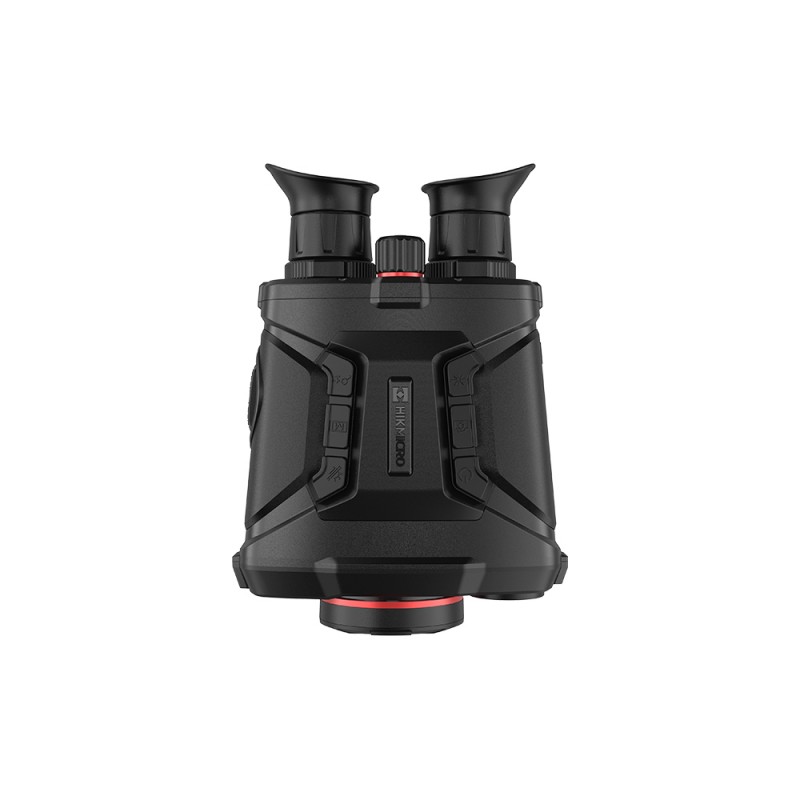

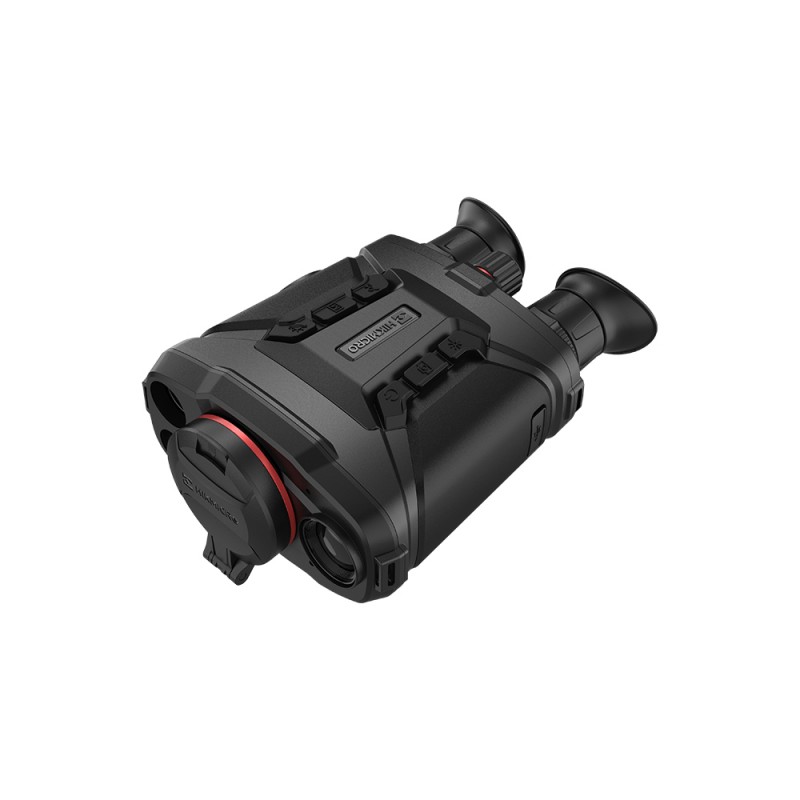

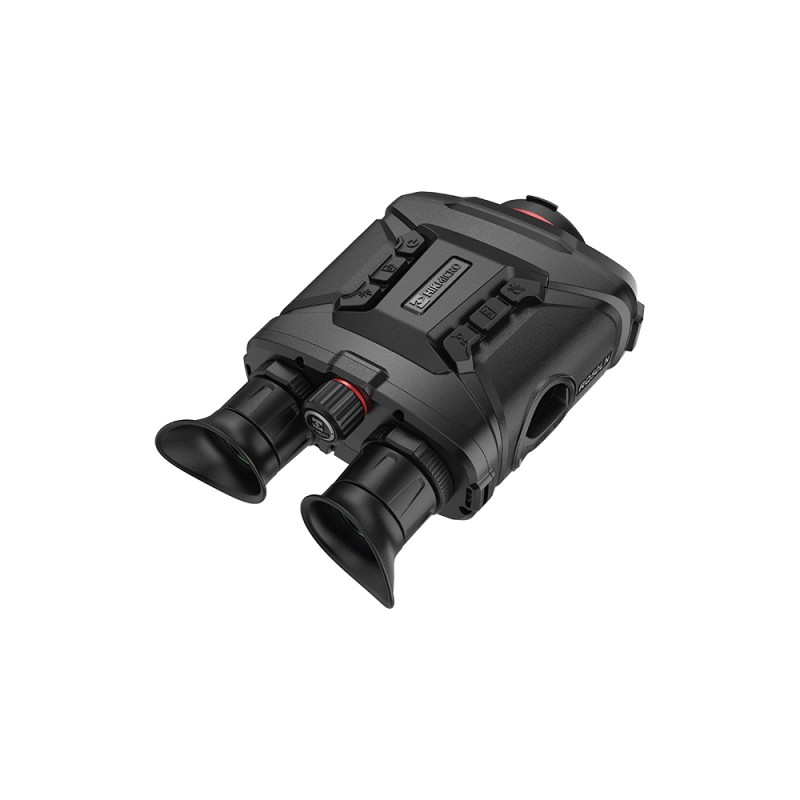

HIKMICRO RAPTOR series is a powerful and innovative handheld thermal digital night vision binocular which adopts 12μm infrared thermal sensor with NETD <20mK sensitivity, 2560×1440 CMOS low illumination optical sensor with built-in adjustable 850nm IR illuminator and accurate built-in laser rangefinder up to 1,000m measuring distance. It delivers excellent image quality in true vivid color or thermal during day and night observation in harsh weather conditions with detection range up to 2,600m. The binocular is mainly applied for day and night observation, hunting, hiking, search and rescue.
Characteristics
- 640 × 512 resolution with 12 μm thermal sensor
- High sensitivity thermal detector NETD < 20 mK (@25°C, F# = 1.0)
- Super large aperture f/0.9 thermal lens
- 2560 × 1440 high resolution CMOS sensor
- Built-in 850nm IR illuminator
- Laser rangefinder, measuring distance 1,000 m (with an accuracy of ± 1 m)
- Thermal detection range up to 2,600 m
- Supports thermal mode, optical mode and image fusion mode
- 0.39-inch OLED display with 1024 × 768 resolution
- Support PIP, GPS, DMC, Local Album, Hotspot, etc. Smart Functions
- Support video recording and snapshots, built-in EMMC (64GB)
Technical specifications
- Image Sensor: VOx 640×512 Uncooled Focal Plane Arrays
- Pixel pitch: 12 μm
- Lens: 50mm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Field of view: 8.8° × 7.0° (H × V)
- Magnification: 3.4
- Display: OLED 1024 x 768 px
- Frame rate: 25 Hz
- Color palettes: Vivid black, vivid white, vivid red, fusion
- Digital zoom: 1x, 2x, 4x, 8x, 16x
- Hot track: Yes
- Detection range: 2,600 meters
- Smart IR: Yes
- IR wavelength: 850nm
- Night vision range: 400 meters
- Laser Rangefinder: Class 1
- Measuring range: 1,000 meters
- Rangefinder wavelength: 905nm
- Measurement accuracy: ± 1 m
- Storage: Built-in memory module (64 GB) Yes
- Record video: Yes
- Capture snapshot: Yes
- Wifi: Yes
- Standby mode: Yes
- Battery Type: Replaceable and rechargeable 18650 lithium-ion battery
- Operating time: Up to 8 hours of continuous operation.
- Protection: IP67
- Working temperature: From -30 ° C to 55 ° C
- Dimensions: 217.5 mm × 155 mm × 87.5 mm
- Weight: 1,120 gr
- Warranty: 36 months
- Sensor warranty: 10 years
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
HIKMICRO Sight App for Android
HIKMICRO SIGHT App for iOS
