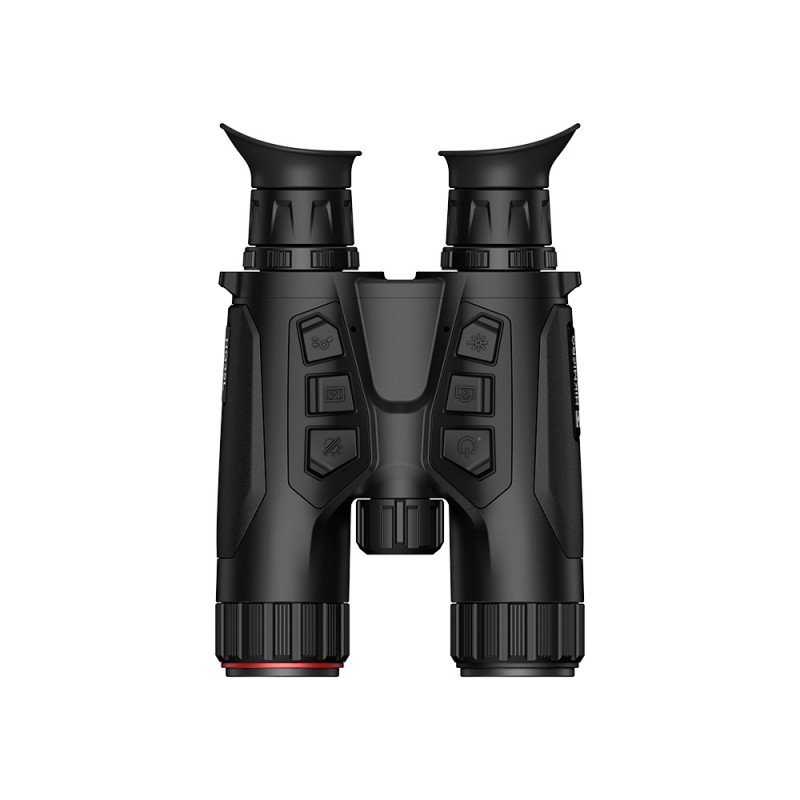

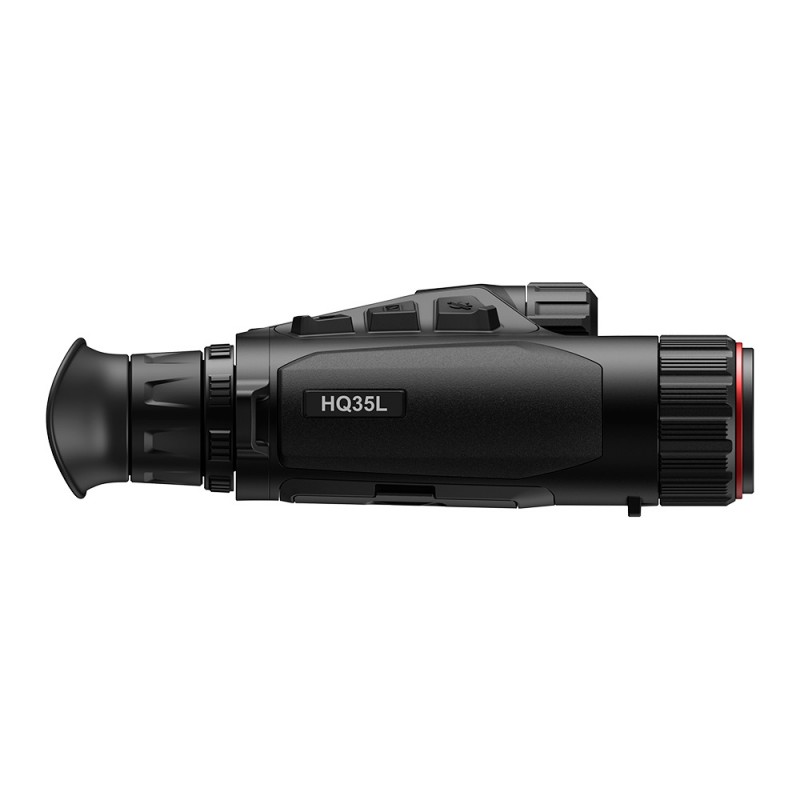

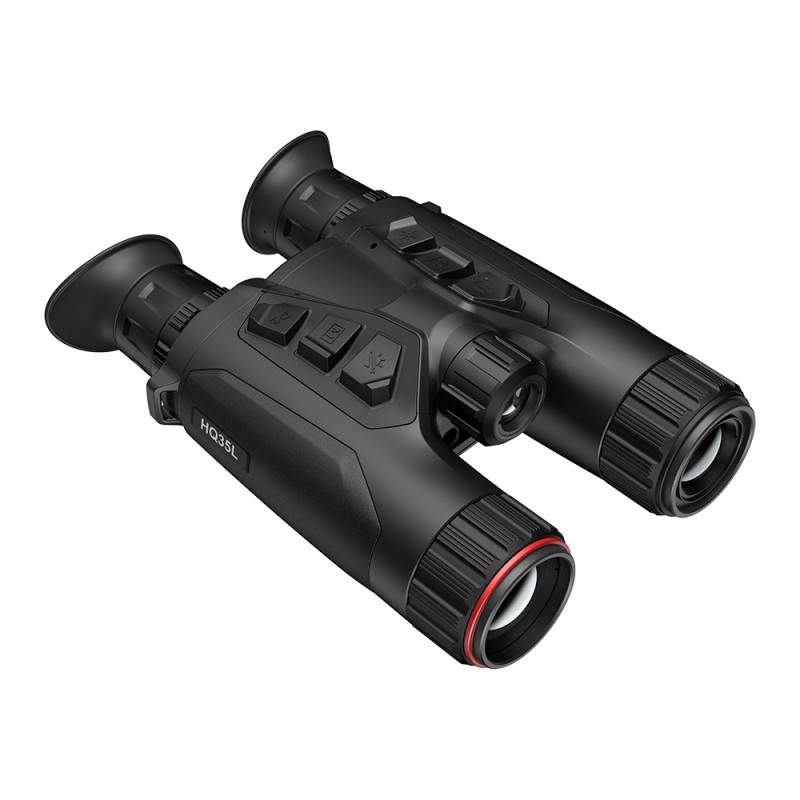

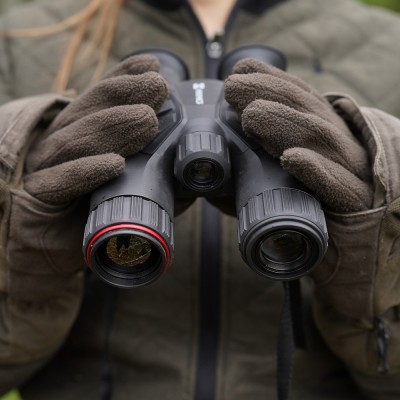

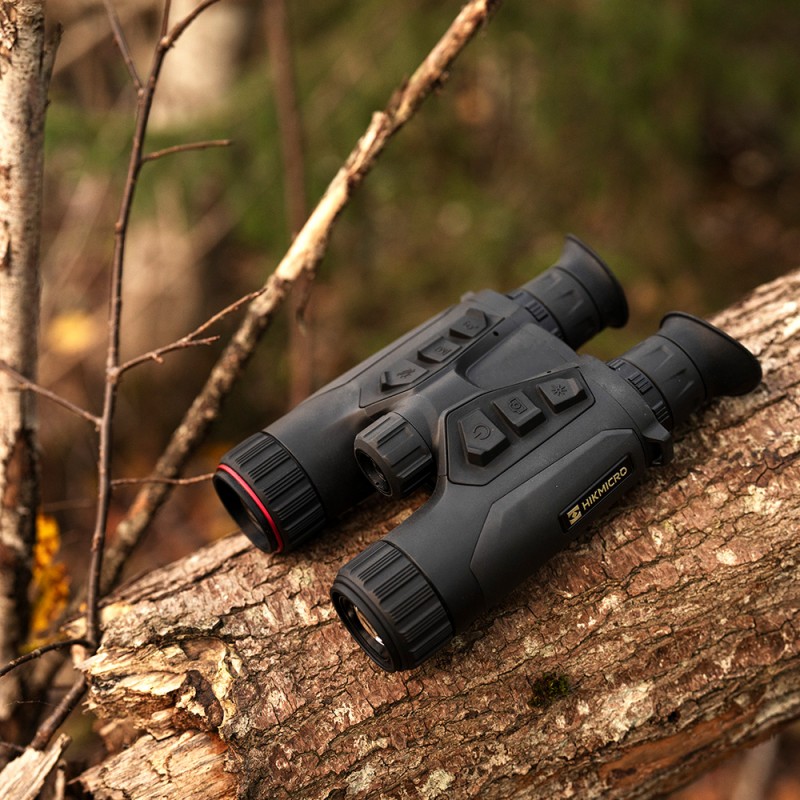

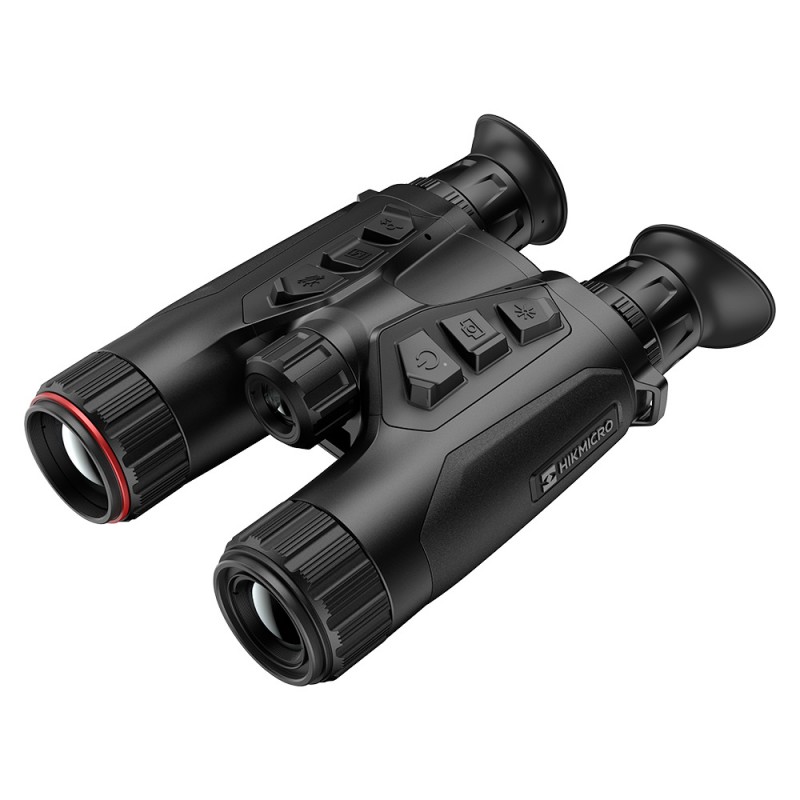

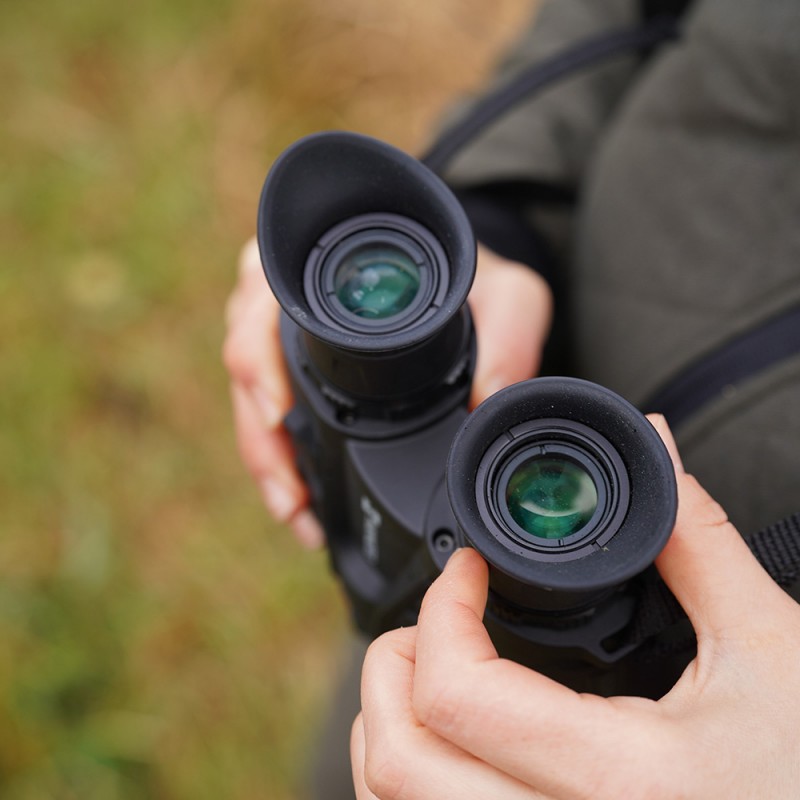

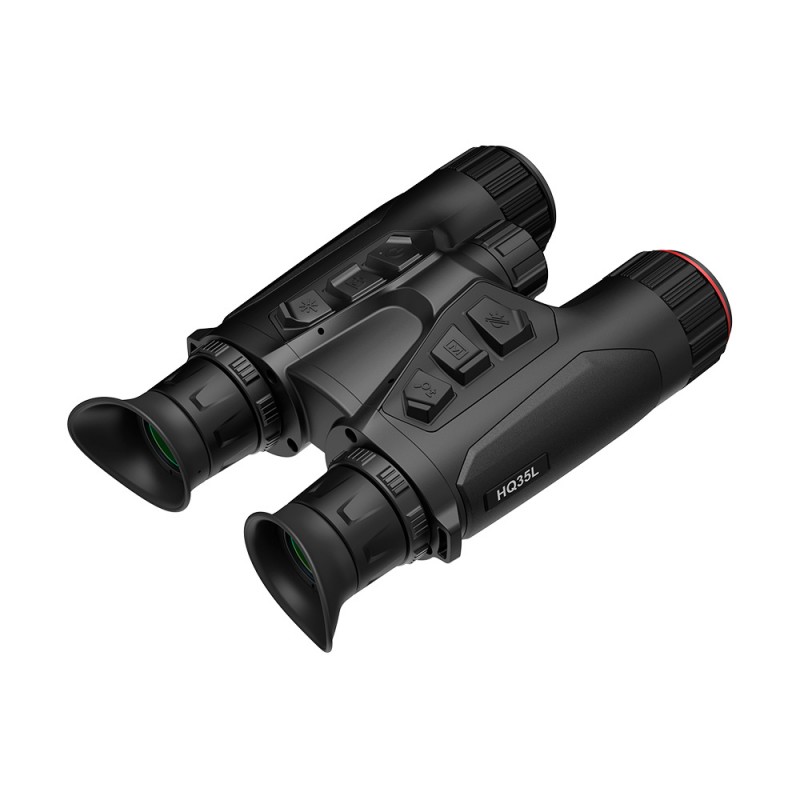

HIKMICRO HABROK HQ35L multi-spectral binocular is equipped with 640×512@12um, NETD<20mK thermal sensor and 2560 x 1440 optical detector, providing clear images in harsh environmental conditions. Its 1,000-meter laser rangefinder can accurately measure the distance when observing in low-light conditions with an accuracy of ±1 meter. It can be mainly applied in activities such as hunting, bird watching, animal searching, rescue, and marine scene.
Main Features
- Thermal sensor resolution 640 × 512 at 12 μm
- High sensitivity thermal module NETD＜20 mK (@25°C, F# = 1.0)
- 35mm F1.0 lens with detection range up to 1,800 meters
- High resolution 2560 x 1440 CMOS detector
- 0.49-inch OLED display with 1920 × 1080 resolution
- Built-in 850nm IR emitter and 1,000m laser rangefinder measuring distance
- Replaceable and rechargeable 18650 lithium-ion battery
- Up to 5 hours of continuous operation
- 850g weight with a compact and ergonomic design
Technical specifications
Thermal module
- Image Sensor: VOx 640 × 512 Uncooled Focal Plane Arrays
- Pixel pitch: 12 μm
- Lens: 35mm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Field of view: 12.5° × 10.1° (H × V)
- Magnifications: 3.0x - 24.0x (8x)
- Detection range: 1,800 meters
Optical module
- Image Sensor: 1.88″ Progressive Scan CMOS
- Resolution: 2560 x 1440
- Lens: 31mm, F1.2
- Minimum illumination: 0.001 lux @ (F1.0, AGC on)
- Magnifications: 2.9x - 23.2x (8x)
- Field of view: 13.9° x 7.8°
- IR Emitter: 850nm
- Safety class: Class 1
- Night vision range: 400 meters
Image display
- Display: OLED 1920 x 1080 px
- Frame rate: 50 Hz
- Palettes: THERMAL (Vivid Black, Vivid White, Vivid Red and Fusion); OPTICAL (Day, Night and Auto)
- Image Enhancements: Image Pro and Zoom Pro
Distance meter
- Laser rangefinder: Yes
- Maximum measuring range: 1,000 meters
- Minimum measuring range: 10 meters
- Rangefinder wavelength: 905nm
- Measurement accuracy: ± 1 m
System
- Storage: Built-in memory module (64 GB) Yes
- Record video: Yes
- Capture snapshot: Yes
- Hot track: Yes
- Wifi: Yes
- Standby mode: Yes
General

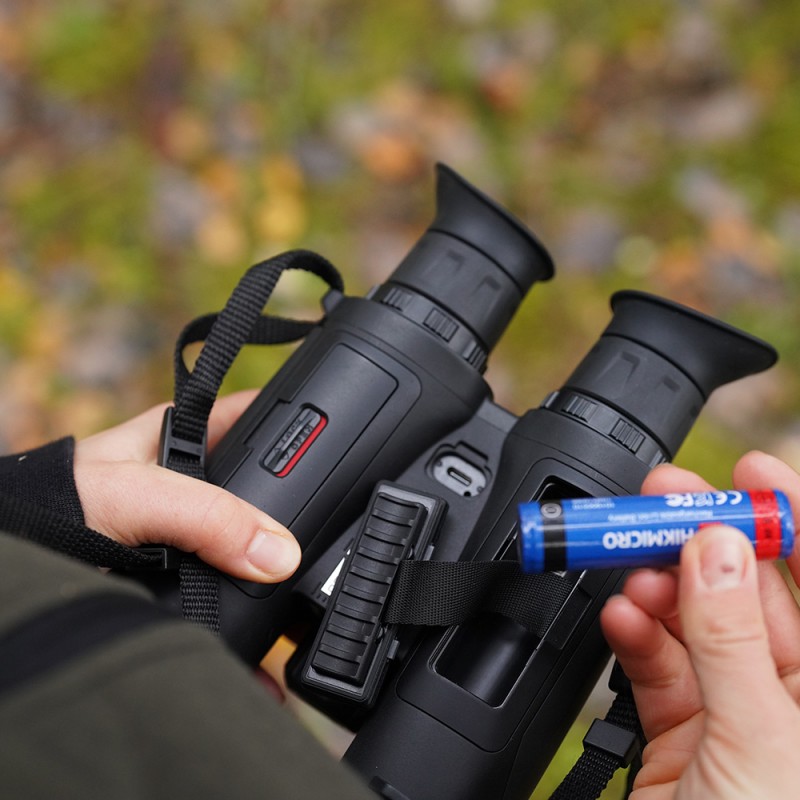

- Battery Type: Replaceable and rechargeable 18650 lithium-ion battery
- Operating time: Up to 5 hours of continuous operation
- Protection: IP67
- Working temperature: From -30 ° C to 55 ° C
- Dimensions: 217.5 mm × 155 mm × 87.5 mm
- Weight: 850 gr (without batteries)
- Warranty: 36 months
- Sensor warranty: 10 years
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
HIKMICRO Sight App for Android
HIKMICRO SIGHT App for iOS
