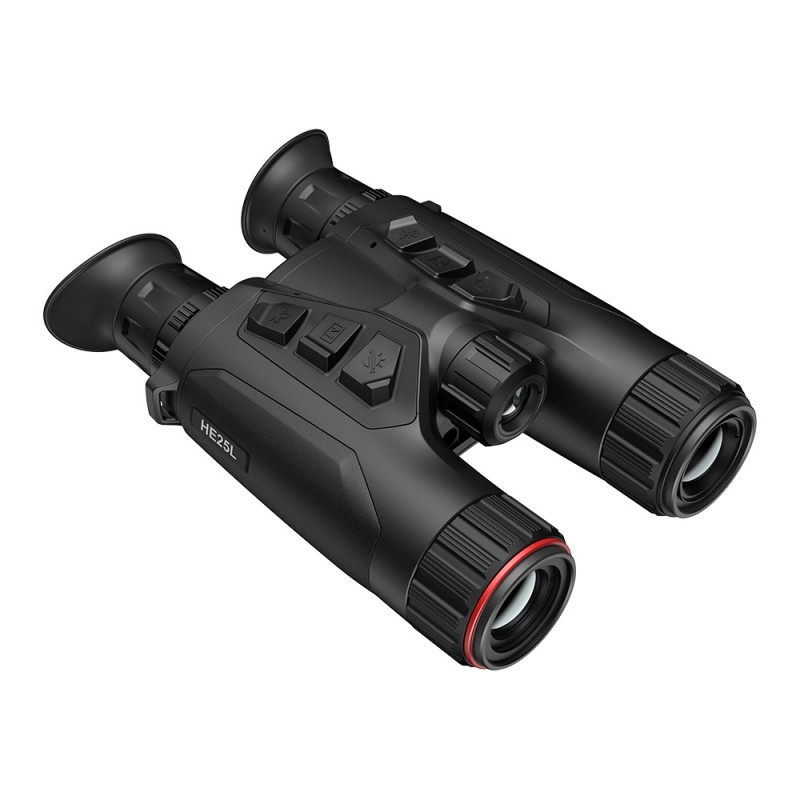

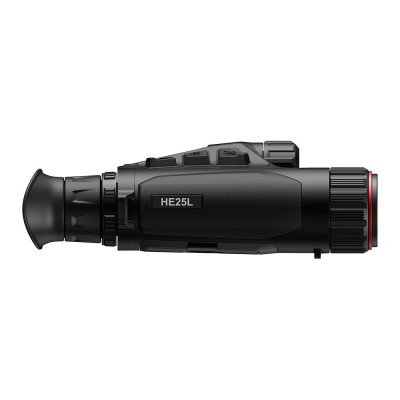

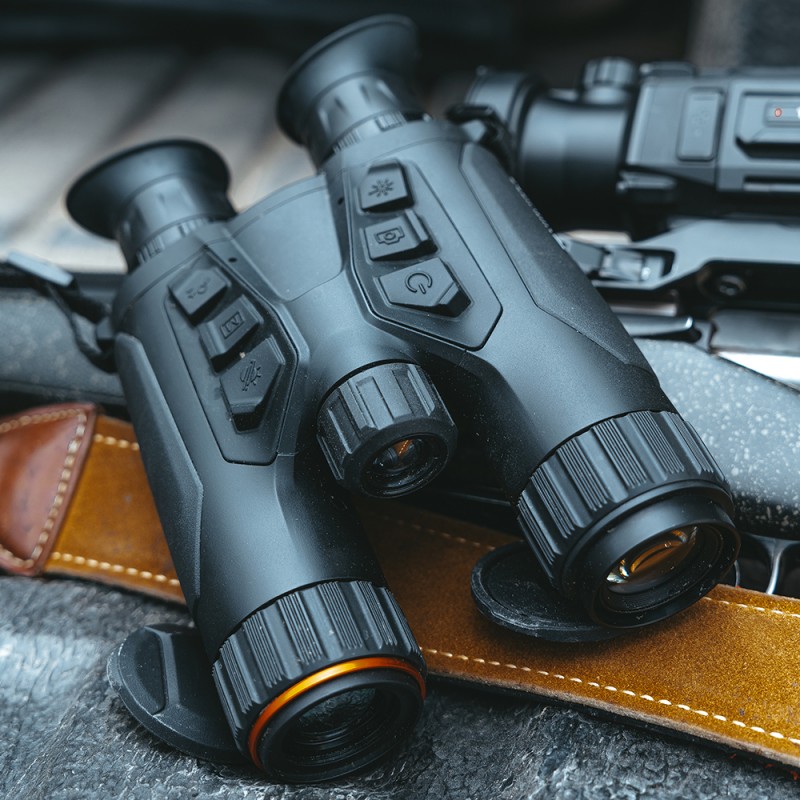

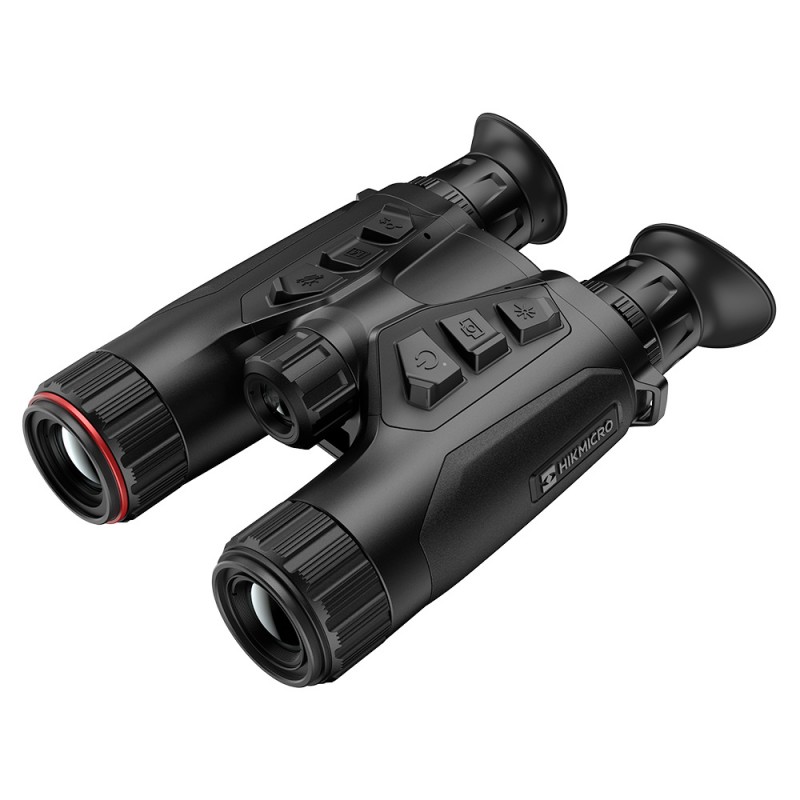

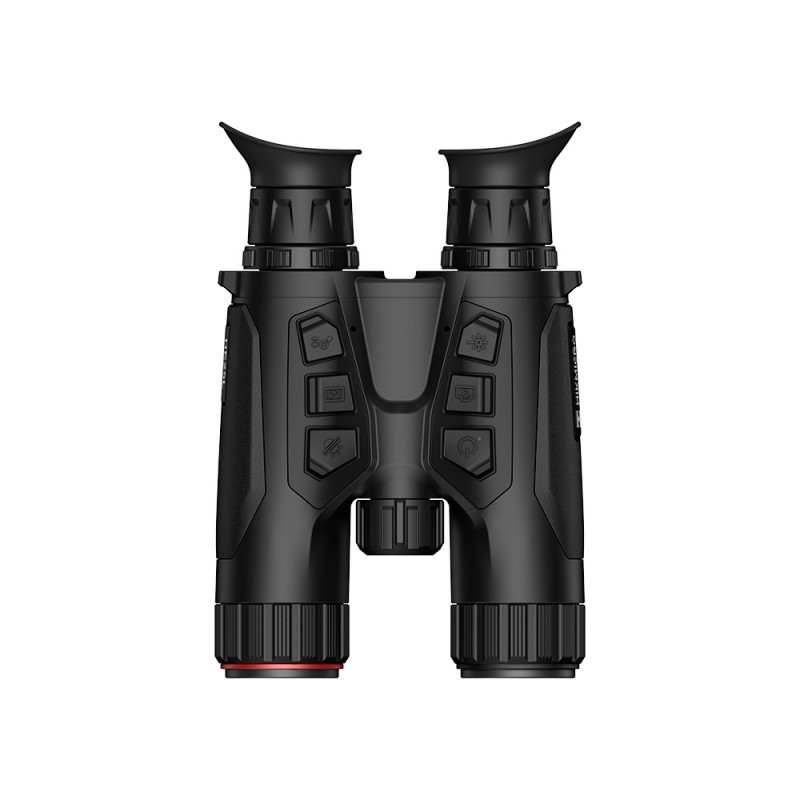

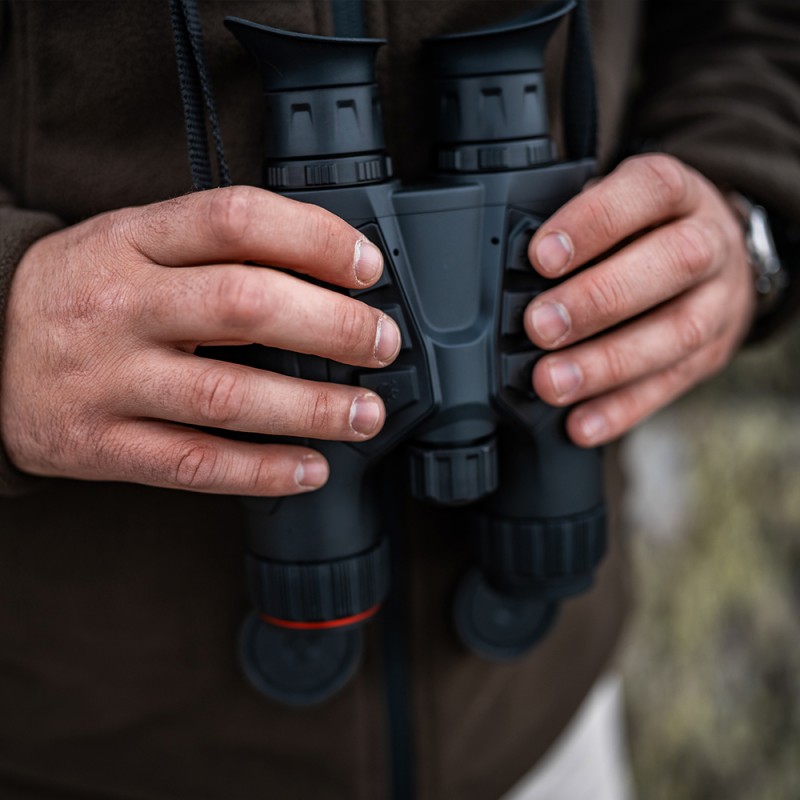

Multispectral Binoculars with Rangefinder + IR 850nm HABROK 4K HE25L HIKMICRO

HIKMICRO HABROK 4K HE25L 5.5-22X60 is a powerful and innovative digital thermal binocular specially designed for daytime and twilight use. Combined with 256 x 192 thermal detector, advanced 4K digital detector for 5.5x-22x @60mm lens and 1,000m laser rangefinder, this all-in-one binocular can be mainly applied in forest and field hunting, bird watching, animal searching, adventure and rescue in various weather conditions.

Main Features

• Thermal detector with 256 × 192 @12 μm resolution
• High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
• 25mm F1.0 lens with thermal detection range up to 1,200m
• Ultra-high resolution CMOS detector 3840 × 2160 4K
• 60mm F2.2 digital lens with 5.5x to 22x digital zoom
• 0.49-inch OLED display with 1920 × 1080 resolution
• Built-in 850nm IR illuminator and 1,000m laser rangefinder measuring distance
• 800g lightweight, with a compact and ergonomic design

Technical specifications

Thermal module

• Image Sensor: VOx 256 × 192 Uncooled Focal Plane Arrays
• Pixel pitch: 12 μm
• Lens: 25mm
• NETD: Less than 35 mK (@25°C), F# = 1.0
• Field of view: 7.0° × 5.3° (H × V)
• Magnifications: 5.3x - 17.2x (4x)
• Detection range: 1,200 meters

Optical module

• Image Sensor: 1.88″ Progressive Scan CMOS
• Resolution: 3840 x 2160
• Lens: 60mm, F2.2
• Minimum illumination: 0.001 lux @ (F1.0, AGC on)
• Magnifications: 5.5x - 22.0x (4x)
• Field of view: 6.9° x 4.1°
• IR Emitter: 850nm
• Safety class: Class 1
• Night vision range: 400 meters

Image display

• Display: 0.49 inches, OLED 1920 x 1080 px
• Frame rate: 50 Hz
• Palettes: THERMAL (Vivid Black, Vivid White, Vivid Red and Fusion); OPTICAL (Day, Night and Auto)
• Image Enhancements: Image Pro and Zoom Pro

Distance meter

• Laser rangefinder: Yes
• Maximum measuring range: 1,000 meters
• Minimum measuring range: 10 meters
• Rangefinder wavelength: 905nm
• Measurement accuracy: ± 1 m

System

• Storage: Built-in memory module (64 GB) Yes
• Record video: Yes
• Capture snapshot: Yes
• Hot track: Yes
• Wifi: Yes
• Standby mode: Yes

General

• Battery Type: Replaceable and rechargeable 18650 lithium-ion battery
• Operating time: Up to 8 hours of continuous operation

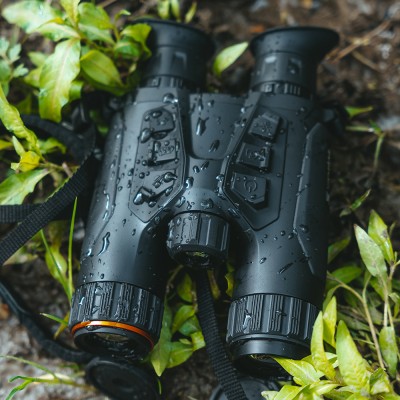

• Protection: IP67
• Working temperature: From -30 ° C to 55 ° C
• Dimensions: 138mm × 68.2mm × 223mm
• Weight: 800 gr (without batteries)
• Warranty: 36 months
• Sensor warranty: 10 years

Box contents

• HABROK 4K HE25L Multispectral Binoculars with Rangefinder
• Neck cord
• Tripod adapter
• Dust cloth
• Type C cable
• Batteries (x4)
• Battery charger
• Quick Start Manual

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
